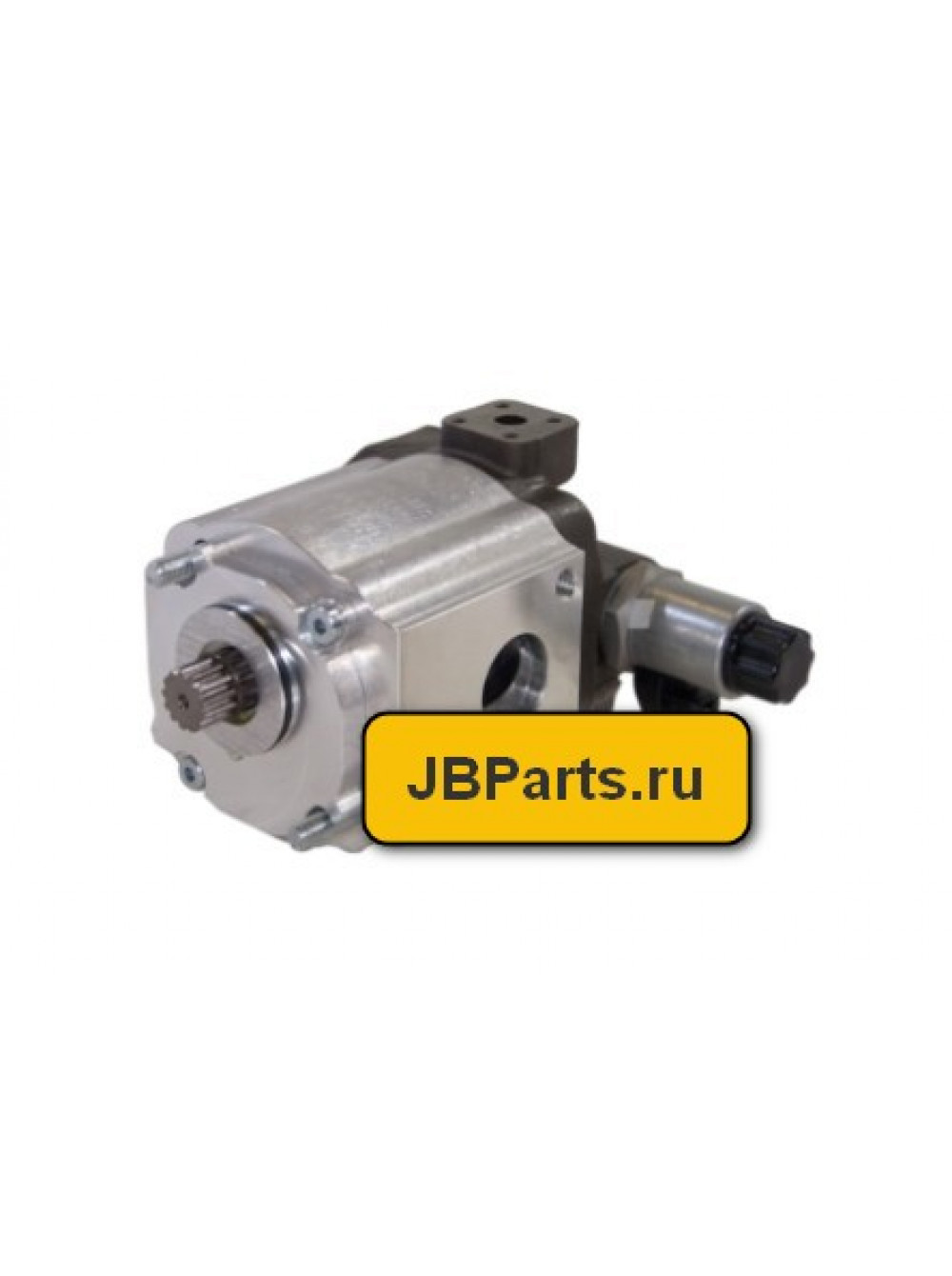

Насос гидравлический Linde 0009812233

Насос гидравлический Linde 0009812233

9812233

Pump type Gear pump

Number of pump elements 1

Flange Type Other

Center Distance Thread - Mounting Holes Flange C1 11 mm

Total length pump L1 201 mm

Neck diameter D2 52 mm

Axle type Type D

Distance end - flange L2 26 mm

Shaft diameter D3 21.6 mm

Number of channels 13

Direction of rotation Clockwise

Suction position 1, for pump type T POS-CO1 only Page

Connection type suction inlet 1, for pump type T only Type H

Thread type mounting holes M12

Center distance between threaded mounting holes C-CO1a 78.2 mm

Position Pressure 1, for pump type T POS-CO2 only Page

Connection type Inlet Pressure 1, for pump type T only Type A

Thread type mounting holes M6

Center distance between threaded mounting holes C-CO1b 35.2 mm

Flow divider present true

Thread type largest connection flow divider TA3 M18

Housing Material Aluminum

Вес (кг) 9.2

Gear Pump 18+16Ccm
