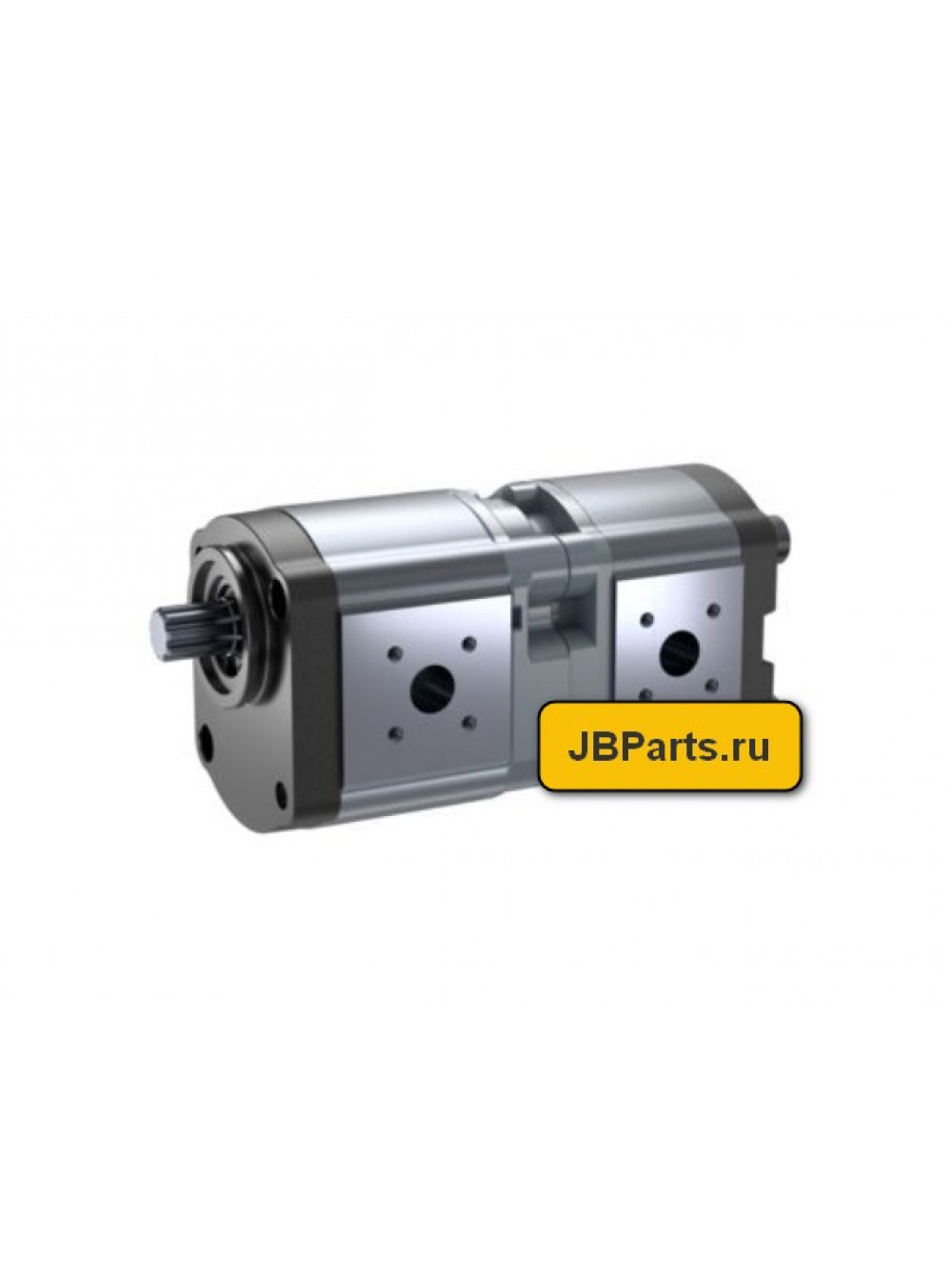

Гидравлический насос Rexroth 0510565063

Гидравлический насос Rexroth 0510565063

1518222162 + 1518222255

AZPFF-11-011/005RFN2020MB-S0014

Max. flow PU2 [l/min]

192.5

Nominal size [cm³/rev]

11.0

Size pump unit 2 [cm³/rev]

55.0

Max. intermittent pressure pump unit 1 [bar]

280.0

Max. intermittent pressure pump unit 2 [bar]

280.0

Maximum rotational speed [rpm]

3500.0

Drive shaft

Spline shaft DIN 5482 B 28x25

Direction of rotation

Clockwise rotation

Front cover

2-hole mounting Ø 50 mm (I H C)

Housing material

Aluminum

Noise level

Standard noise level

Product

External gear unit

Model

4 ... 28 cm³/rev

Model pump unit 2

4 .... 28 cm³/rev

Series

Shaft Ø 18 mm

Version

phosphatized, pinned

Port connection

Square flange

Port connection pump unit 2

Square flange

Sealing material

NBR

Rear cover

Standard (cast iron)

Non-standard version

Deviations from catalogue standards, see drawing

Weight [kg]

5
