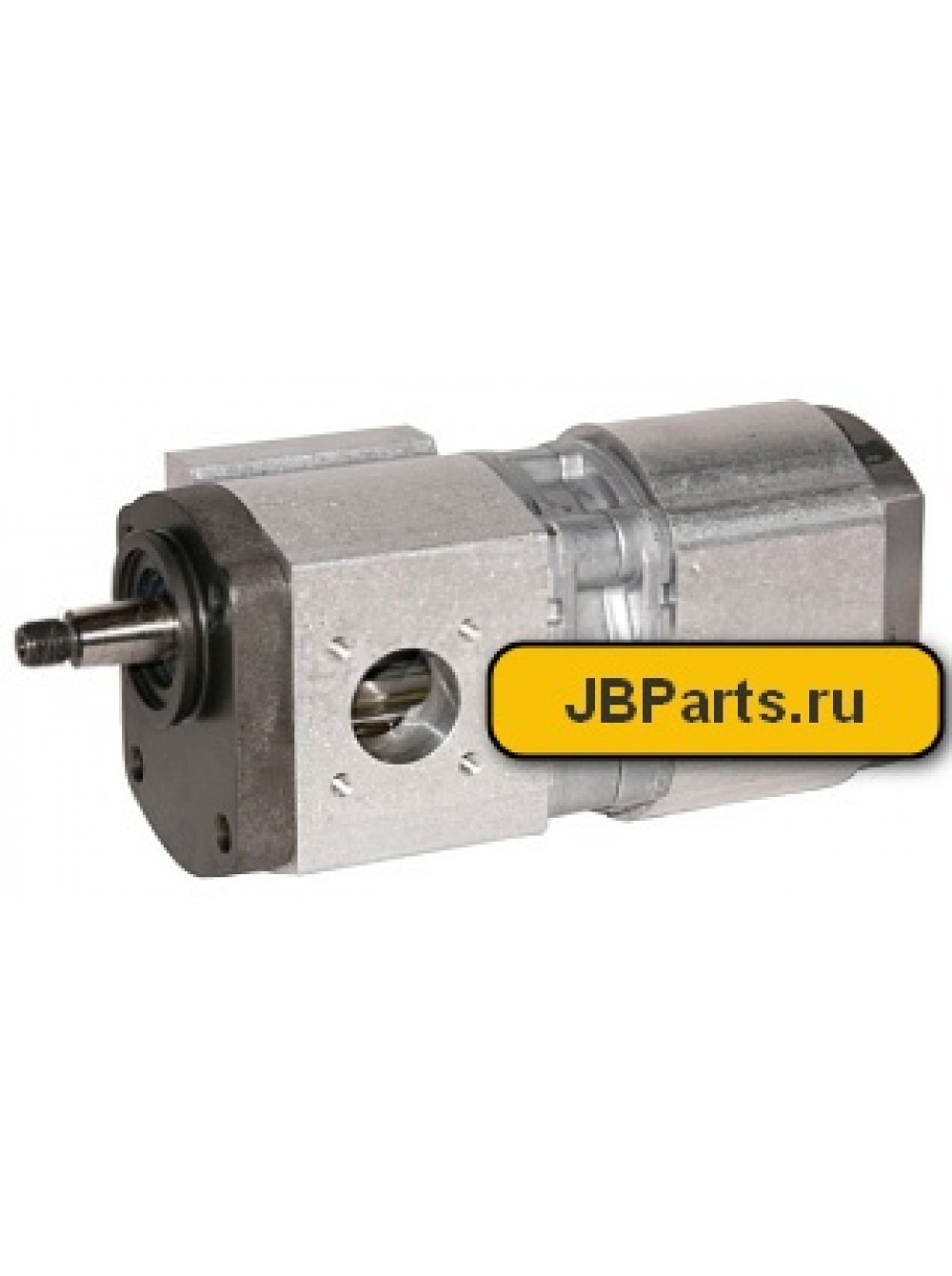

Гидравлический насос Rexroth 0510665491

Гидравлический насос Rexroth 0510665491

MNR 1518222090

Type of pump gearpump

Number of elements 2

Type of flange special

Total length of pump L1 (mm) 228

Neck diameter D2 (mm) 50

Type of shaft type G

Distance from flange to end L2 (mm) 40

Diameter of shaft D3 (mm) 14.5

Key (way) width W (mm) 3

Thread type (on shaft) TA2 M12

Direction of rotation counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1 side

Type of connections suction port1st element, only for pump type T TY-COa type C

Thread type of connections suction 1st element M6

Center distance between mounting holes C-CO1a (mm) 35.5

Center distance between mounting holes C-CO2a (mm) 35.5

Position of pressure 1st element, only for pump type T POS-CO2 side

Type of connections pressure 1st element, only for pump type T TY-COb type F

Position of pressure port 2nd element, only for pump type T POS-CO4 side

Type of connections pressure port 2nd element, only for pump type T TY-COd type F

Flow control valve present NO

Material of the housing aluminium

Output volume (cc/rev): 14 + 19

Weight: 5.53 kg
