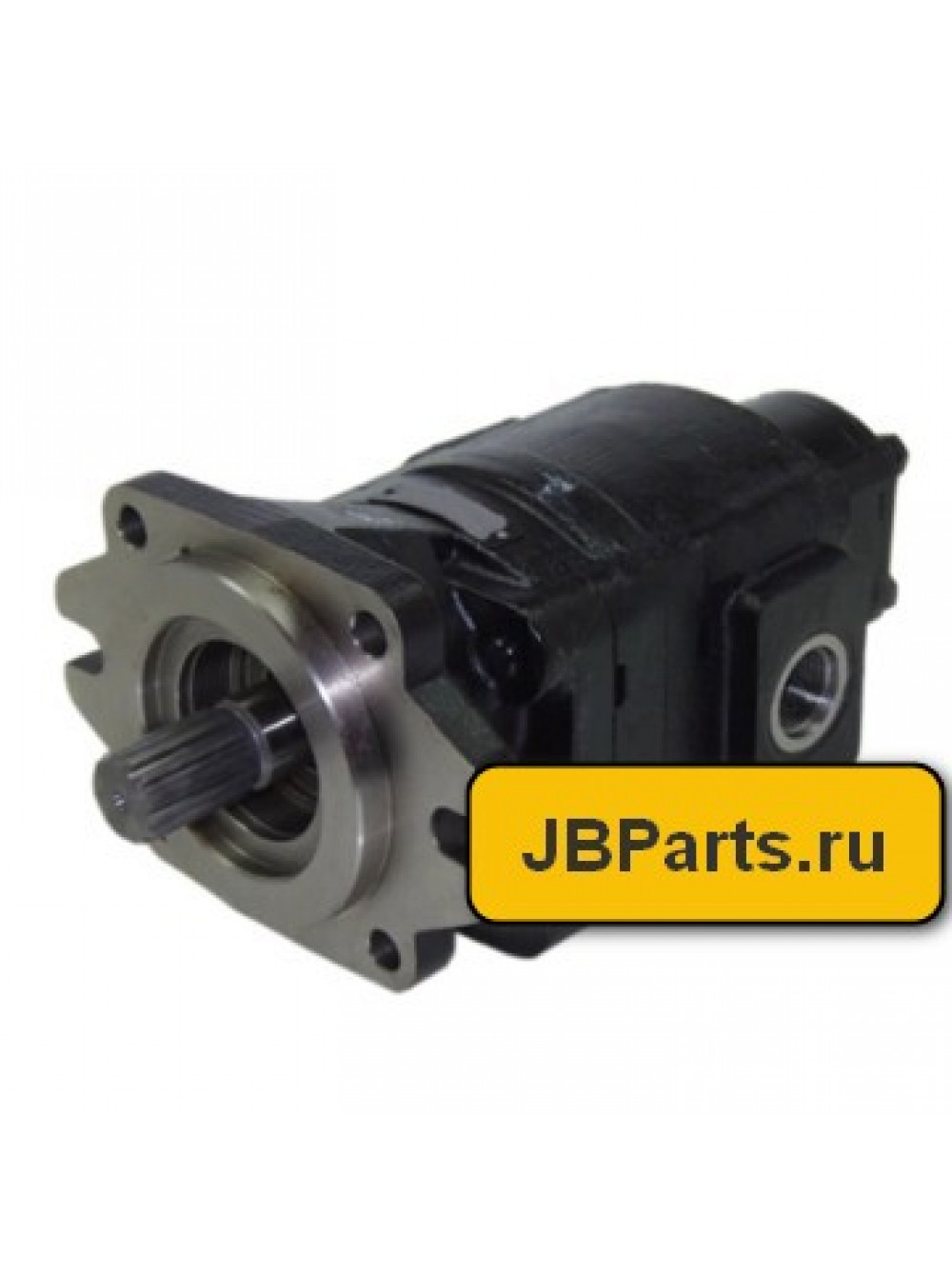

Гидравлический насос Doosan D516903

Гидравлический насос Doosan / Deawoo / Crown D516903

Number of pump elements 2

Type flange Type M

Diameter of threaded mounting holes flange D1 14.5 mm

Center distance thread - mounting holes flange C1 181 mm

Center distance thread - mounting holes flange C2 114.5 mm

Total length of pump L1 356 mm

Neck diameter D2 127 mm

Axle type Type D

Distance end - flange L2 56 mm

Axle diameter D3 31.2 mm

Number of channels 14

Direction of rotation clockwise

Suction position 1, for pump type T POS-CO1 only Page

Connection type suction inlet 1, only for pump type T Type C

Thread type Mounting holes M12

Center distance between threaded mounting holes C-CO1a 42.9 mm

Center distance between threaded mounting holes C-CO2a 77.8 mm

Position Pressure 1, for pump type T POS-CO2 only Page

Connection type inlet pressure 1, solely for pump type T Type E

Thread type pressure element 1 TA-Pb 1 5/16 UNF

Position Pressure 2, for pump type T POS-CO4 only Page

Connection type pressure inlet 2, solely for pump type T Type E

Thread type pressure element 2 TA-Pd 1 1/16 UNF

Flow divider available false

Material of the casing Aluminum and metal
