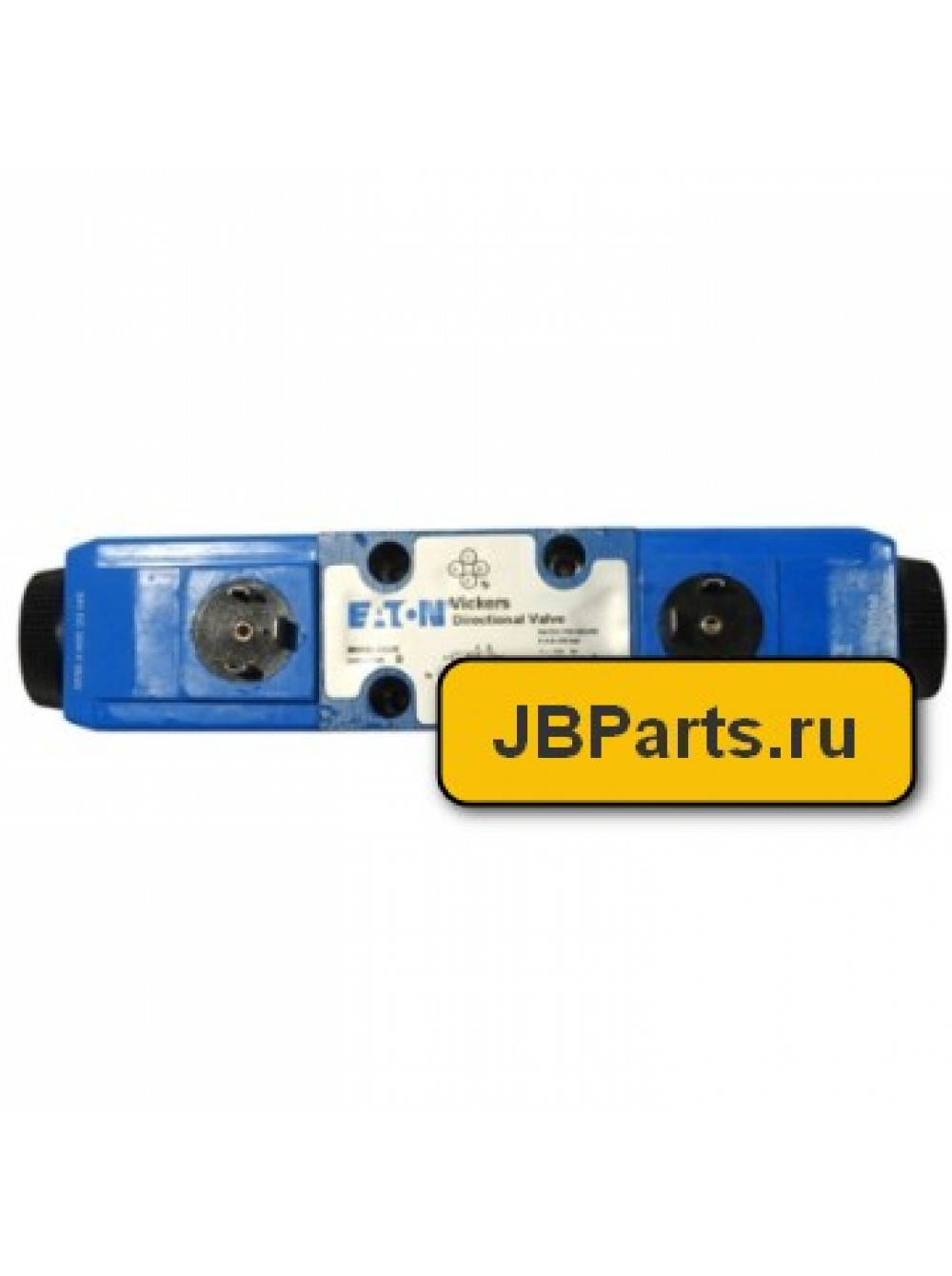

Гидравлический клапан Vickers DG4V32NMUH760
DG4V-3-2N-MU-H7-60
Coil Rating
24 VDC
Design Series
60 Series
Electrical Connection
ISO 4400 (Din 43650) connector
Energ Time
45-28 ms
Flow rate upto GPM
21.0
Flow rate upto LPM
80.0
Fluid Cleanliness
19/17/14 micron
Fluid compatibility
Petroleum oils
Indicator Light
No
Interface
ISO4401-03
Manual override
Plain
Model Code 1
DG4V32NMUH760
Power Consumption
30 watt
Pressure rating BAR
350
Pressure rating PSI
5000
Product height in
3.420
Product length in
6.140
Product length mm
155.956
Product width in
1.880
Product width mm
47.752
Seal type
Viton
Solenoid Energising ID
Standard as per ANSI B93 9
Spool Position Monitor
No
Spool Type
Spool 2
Spring Arrangement
No spring detented
Stage
Single stage
Surge Suppr Damper
No
Tank port rating BAR
210
Tank port rating PSI
3000
Valve Mount Type
Subplate/manifold mounted
Valve type
Directional control valve
Working temp max C
70
Working temp max F
158
Working temp min C
-20
Working temp min F
-4
