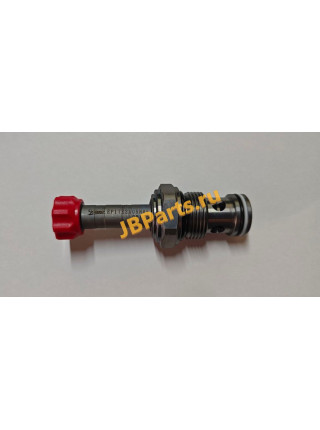

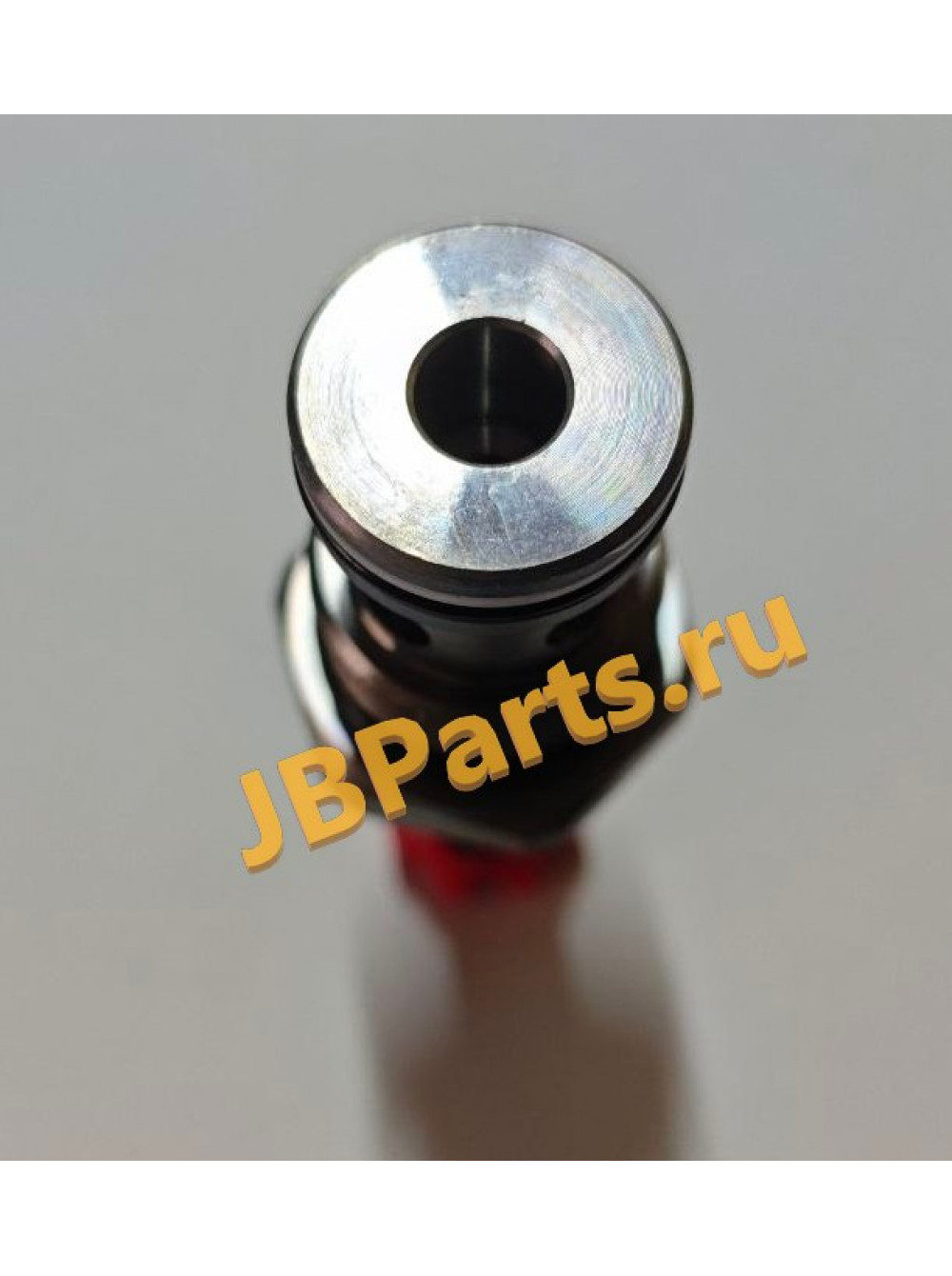

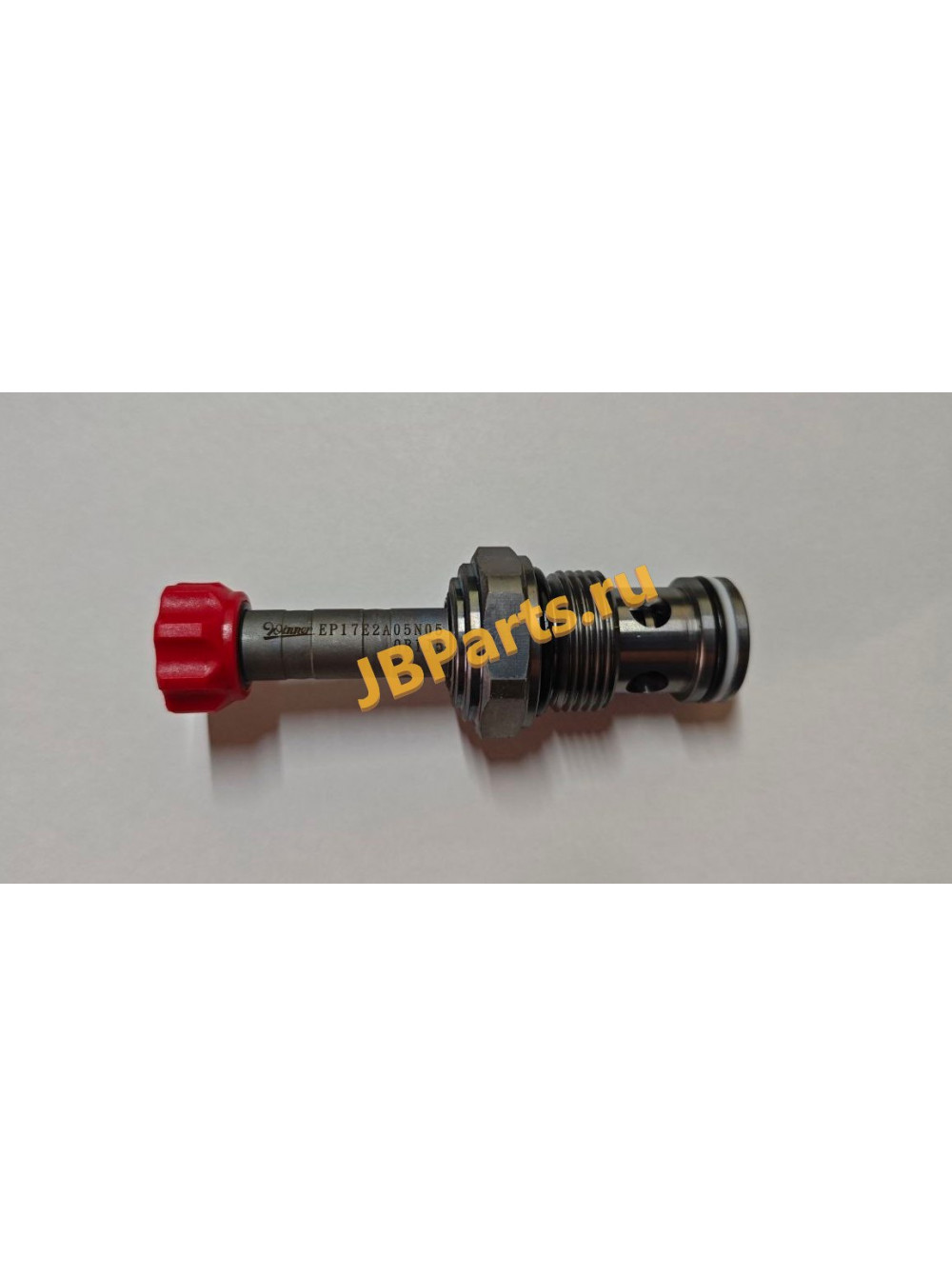

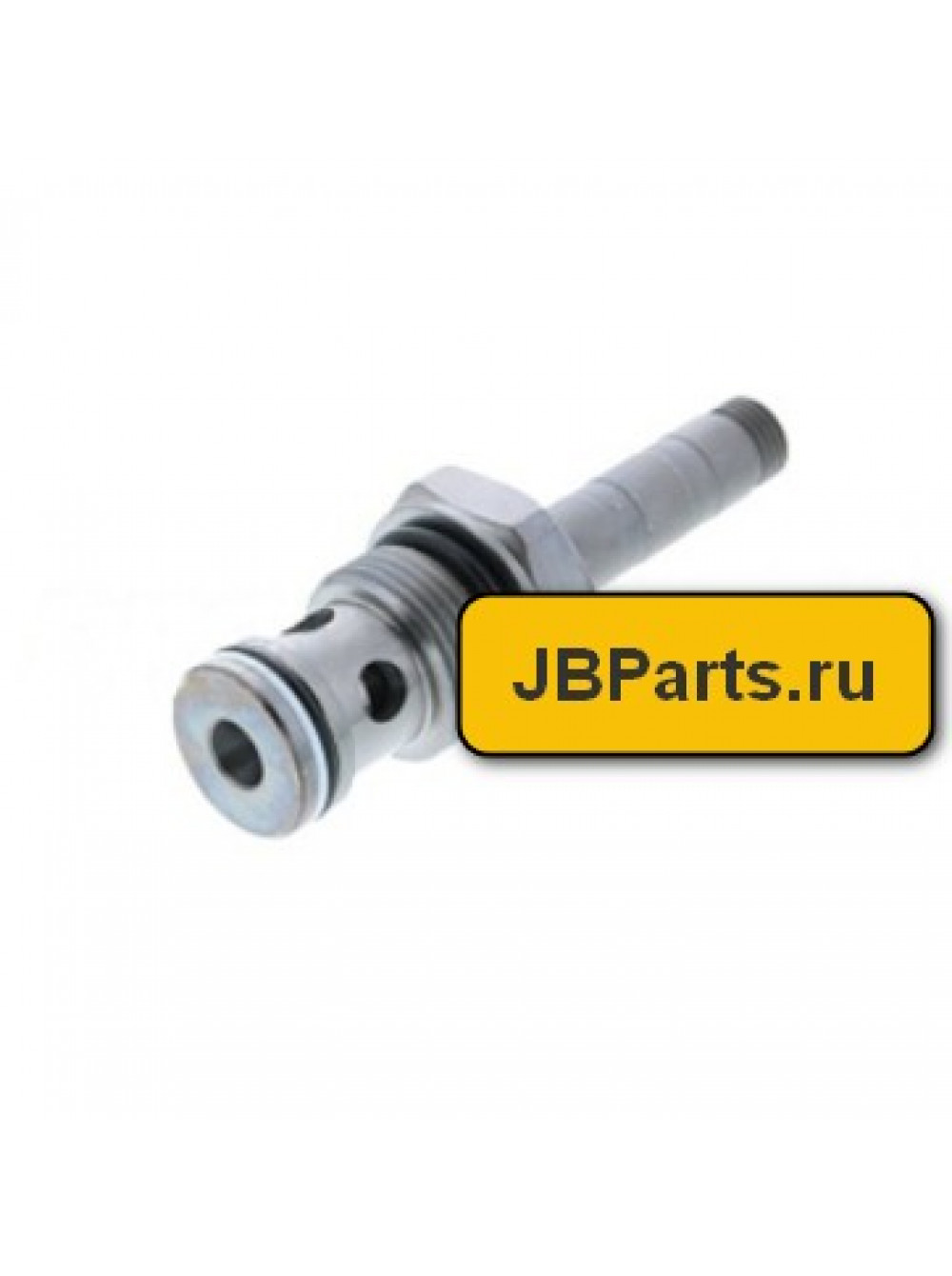

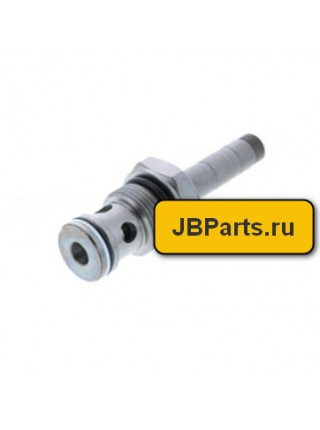

Гидравлический клапан Rexroth R901113673

Гидравлический клапан Rexroth R901113673

OD1505173AS000

VEI8A2A09.17K05.37NCC218SXX3

Winner EP17E2A05N05 EP-17E-2A-05-N-05

Cavity 17E-2

Rated Flow 70 L/min

Maximum Operating Range 350 bar

Fluid Temperature Range -40 to 120 ℃ (-40 to 248 ℉)

Maximum Leakage Approximately 0.15 cc/min (3 drops/min) at 350 bar

Salt Spray Test to DIN EN ISO 9227:2017-07 Exceed 1000 Hours

Solenoid Valve Hex Size 32 mm

Solenoid Valve Installation Torque 54 - 66 Nm

Locknut Torque 2 - 3 Nm

Weight 0.22 kg (Z=N)

Mounting Position Unrestricted

Coil Type EC-04W

Supply Voltage 90% of nominal

Power Consumption 20W

Ширина (мм) 55

Длина (мм) 185

Высота (мм) 50

Вес (кг) 0.26
