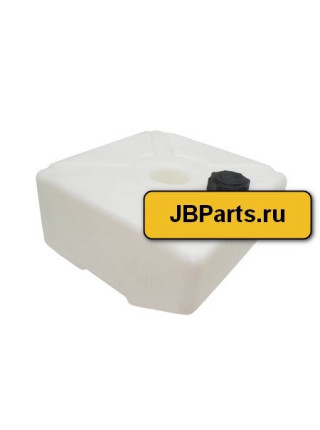

Расширительный бачок JCB 332/U7589
332U7589
Tank expansion ABI запчасти на JCB 456
Shape of the expansion tank
mainly square-rectangular
Specific shape of the expansion tank
rectangular stepped and/or bevelled
Cap present
YES
Type of cap
cap with inner thread
Total number of connections
3
Number of hose connections
3
Sensor present
NO
Number of fixations
1
Type of fixation
holes and grooves
Maximum height without cap H1 (mm)
192
Maximum height with cap, if present H2 (mm)
202
Total length L1 (mm)
337
Total width W1 (mm)
304
Biggest diameter of the hose connection D3 (mm)
30.3
Second biggest diameter of the hose connection D4 (mm)
12
Third biggest diameter of the hose connection D5 (mm)
12
Connection diameter of the cap D7 (mm)
49.4
Outer diameter of the cap D8 (mm)
61
Diameter of the cap connection on the tank D9 (mm)
50.8
Hose present
NO
Material
plastic
Вес (кг): 1,65
