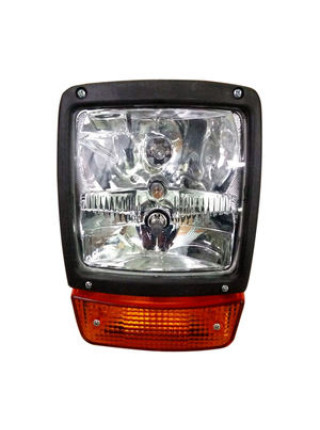

Фара JCB 700/38400

Фара JCB 700/38400

700/38501 700/38501 700/38500

70038400 70038501 70038501 70038500

Shape of the front light

other

Total length (L1) (mm)

212

Length of the housing surrounding the lens (L2) (mm)

212

Total height (H1) (mm)

150

Height of the housing surrounding the lens (H2) (mm)

150

Total width (W1) (mm)

125

Width of the housing surrounding the lens (W2) (mm)

101

Bracket present

NO

Guard present

NO

Position of attachment

built-up

Horizontal mounting

NO

Vertical mounting

YES

Number of mounts

1

Type of mounting

bolt

Thread size of the external thread

M12

Metric pitch of the external thread (mm)

1.75

Right thread/left thread of the external thread

right hand thread

Minimum voltage (U1) (V)

12

Maximum voltage (U2) (V)

12

Type of connector

connector 4

Number of connectors

1

Number of pins in the connector

5

Low beam present

YES

High beam present

YES

Parking light present

YES

Daytime running light present

NO

Indicator light present

YES

Foglight present

NO

Right side/left side/both sides mountable

both sides

Bulbs included

YES

Replaceable lens

YES

Material of the lens

glass and plastic

Type of technology

halogen and incandescent

Вес (кг): 1,5
