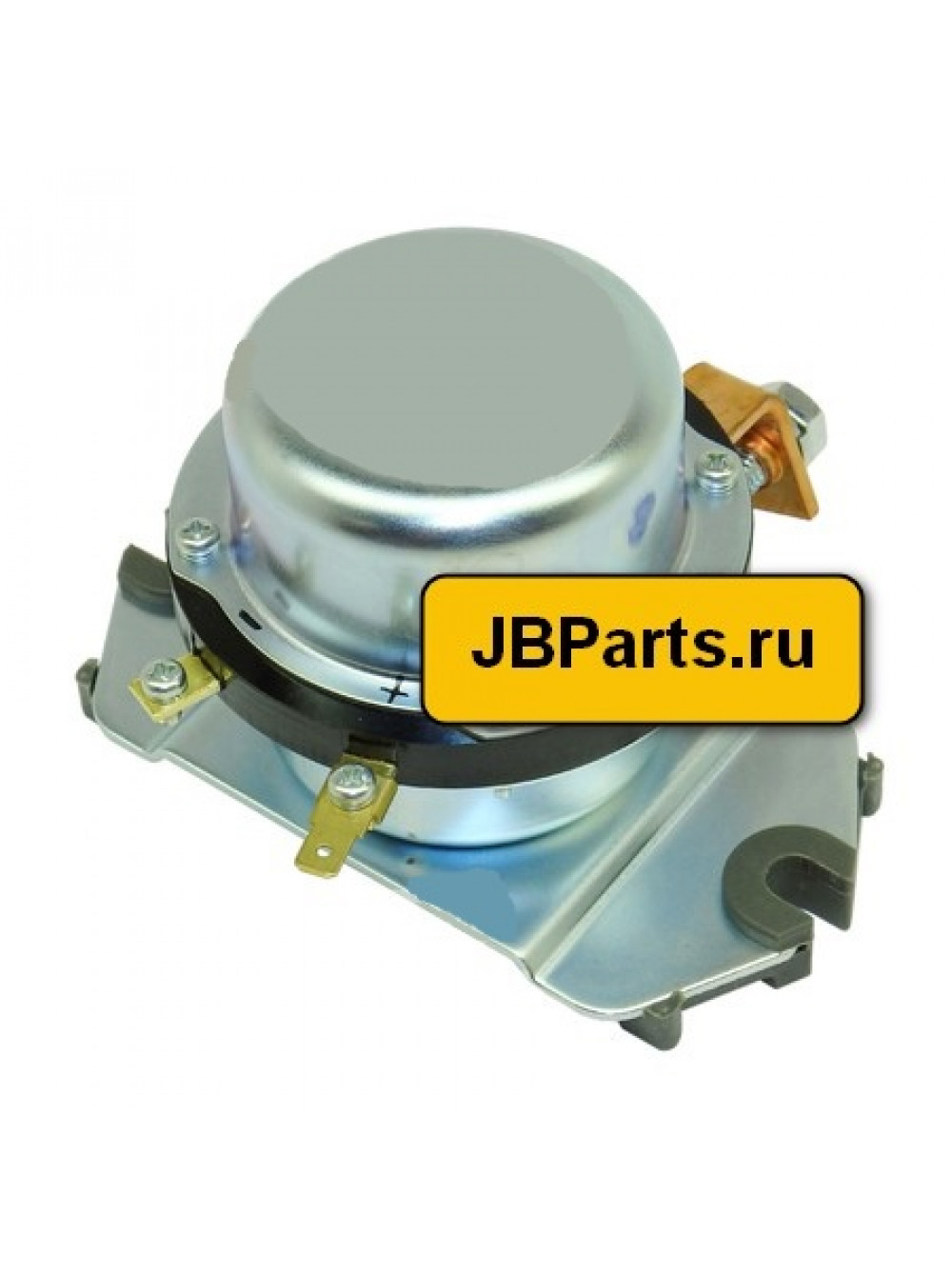

Контактор Komatsu 2544-9024

Контактор Komatsu 2544-9024

Deawoo / Doosan 25449024

Shape of the contactor

round shape 7

Maximum length of the contactor L1 (mm)

132

Maximum width of the contactor W1 (mm)

118

Maximum height of the contactor H1 (mm)

82

Maximum diameter of the contactor D1 (mm)

87

Number of solenoids

1

Voltage of the solenoid (V)

24

Type of current

direct current

Current (A)

100

Resistance of the solenoid (Ohm)

40.1

Number of connections on the solenoid

2

Type of connection on the solenoid

screw

Number of contact connections

2

Type of contact connection

inner thread

Inner thread size

M8

Pitch metric of inner thread (mm)

1.25

Right or left handed inner thread

right hand inner thread

Fuse present

NO

External diode present

NO

External resistor present

NO

Number of normal open contacts (NO)

1

Auxiliary contact present

NO

Magnetic blow outs present

NO

Top cover

closed

Shortest center distance between mounting holes C1 (mm)

120

Shape mounting surface

flat

Support present

NO

Вес (кг): 1,06
