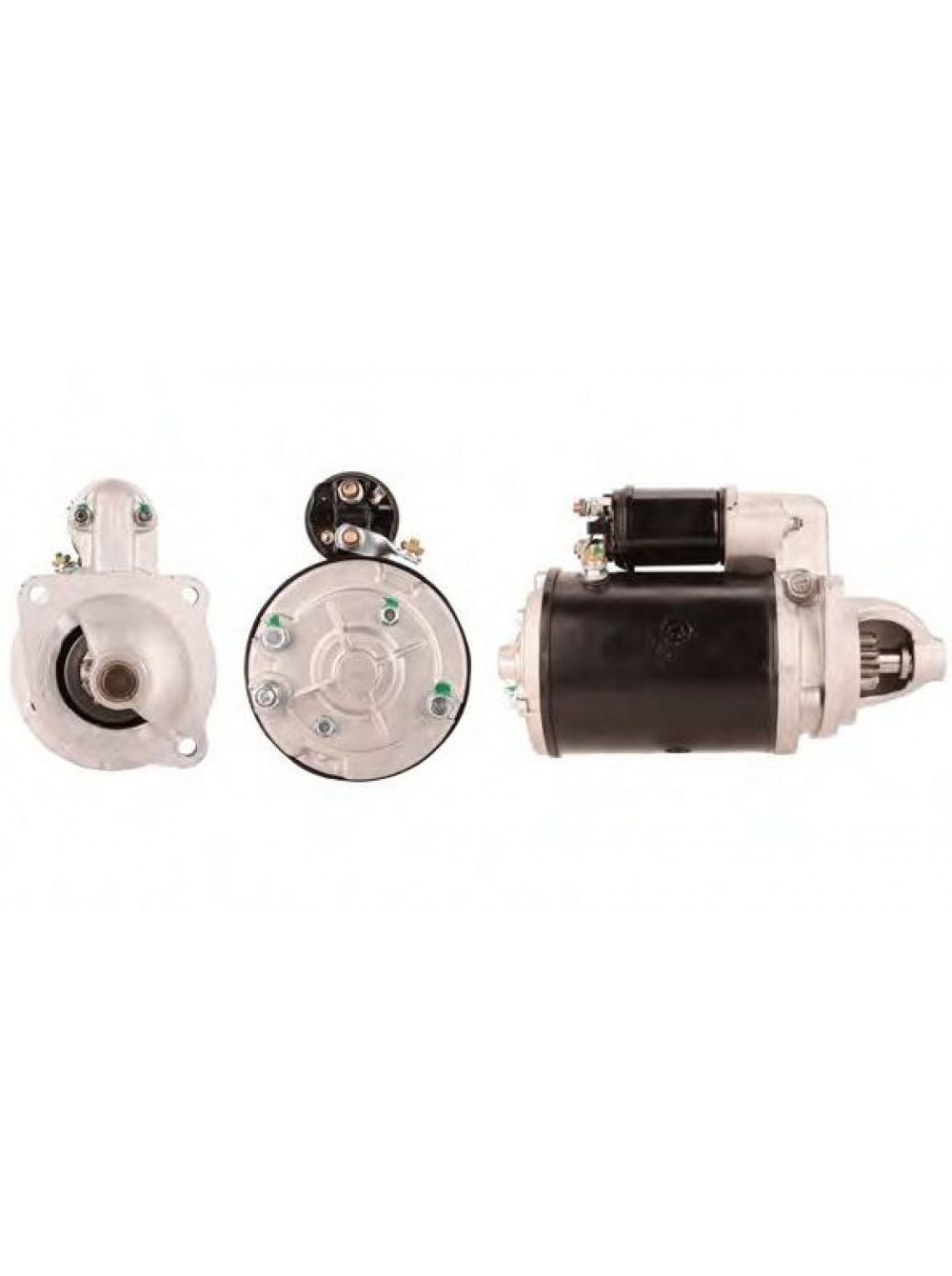

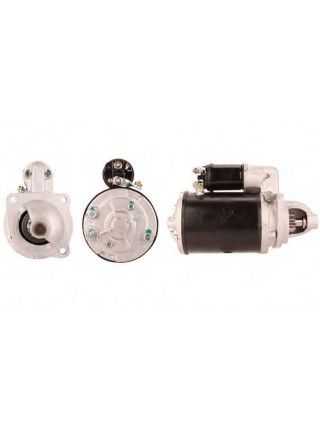

Стартер Lucas 2873B71

Стартер LUCAS 2873B71

Starter type	starter
Type of head	Z
Voltage (V)	12
Neck diameter D1 (mm)	89
Pinion diameter D2 (mm)	38
Number of teeth	10
Direction of rotation of the pinion	CW
Overall length of the starter L (mm)	312
Distance between pinion and flange L2 (mm)	30
Distance between pinion and nose L3 (mm)	17
Distance drive cover (mm)	75
Number of holes	3
Position of fixation holes	55-05-25
Distances between fixation holes	90-90-127
Diameter mounting holes D3 (mm)	10.5
Oil sealed	NO

Вес (кг) 14,10

AHLMANN: 4186376A

BTS Turbo: S511601

CV PSH:

700.005.103

0727609000

11130526

11130629

11130808

1206039

18387

18387N

230281

234987A1

26025009A

26148

26283

26357

26375

27585A

27588A

3551773M91

3581576

3581576M2

3648190M91

388186A1

388186A2

388186AZ

38818A1

54244390

91178879

91178888

91251126

AZF4148

DEM137

DEM937

JST3011

LES0016

SM1209

SM2513

STR4105sa

700.503.103

700005103

700517103

590023103

DRI: 600.009.102, 600009102, 250201, 613002102

FARCOM: 103770, 103691

HANOMAG: 4917271T, 4917271M91

JCB: 714/09100R, 714/29300R, 71429300R,

714/40006, 714/40158,

71409100, 71429300, 71440158, 714-29300R, 714-29500R,

71429500R, 71409100R, 26294, 26343

KOMATSU: 6810-81-9100, 6810-81-9101, AT2873B056,

6810819100, 6810819101

KRAMER: 0000806218

LANDINI: 3551773M91, 3581576M2, 3551 773 M91,

3648 190 M91, 3648 190 M92, 3648190M91, 3648190M92, 3667040J9A

LETRIKA: IS0526, 11131575, AZJ3151, AZJ3331, IS0808,

IS1160, 11.130.526, 11.131.070, AZJ3369, 11 130 526,

AZJ 3151, 11130526, IS 0526, IS1377, IS.0526, 11130808,

11130875, 11131228, AZJ3306, IS 0808, IS 0875, 11131397,

11131410, 11131508, 11131606, 11131780, 11131946,

11131964, 11131973, 11132035, 11132149, 11132160,

11132175, AZE4151, AZE4172, AZE4199, AZE4207, AZE4219,

AZE4245, AZF4102, AZF4111, AZF4132, AZF4264, AZF4315,

AZF4321, AZF4569, IS 1019, IS 1064, IS 1071, IS 1195, IS 1377,

11131070, IS0875, AZF4148, 91236521

LINDE: 3542221800

LUCAS ELECTRICAL: LRS00968, 26294, 26357, 26369, 27502, 27506,

27518, 27570, 27585, 27588, 27592, 27596, LRS 195, LRS 968, LRS00195,

LRS161, 26294A, 26294D, 26294N, 26357B, 26357D, 26357H, 26369D,

27502B, 27502E, 27518B, 27518E, 27518F, 27518H, 27518J, 27520,

27570B, 27570F, 27585A, 27588A, 27596A, 27607, 27607A, 26359,

LRS 161, LRS00161, R27592, LRS195, LRS968, 26025009b, 26256963,

26294B, 26294E, 26294F, 26294G, 26294H, 26294I, 26294J, 26294K,

26294L, 26294M, 26294O, 26294P, 26294Q, 26357A, 26357C, 26357E,

26357R, 27518A, 27518C, 27518D, 27518K, 27524, 27566A, 27588B,

27588H, 27596D, 54244390, 63227518, LES0016, LES0040, LRS691,

NSB522, NSB524, LRS19, LRS00124, LRS00302, 27511, 27625,

26025009, 26925316, LRS00620, LRS02206, 26025009A,

26925316A, LRS00691, LRS107, NSB526, 26 294, 26 357,

26 359, 26 369, 27 502, 27 518, 27 520, 27 570, 27 585,

27 588, 27 592, 27 596, 3 SM 127, LRS00107, 27584,

27603, 27609, 27621, 27628, 26349, 26349D, 26416, 26416A,

27543, LRS302, 27615, LRS000195

MAGNETI MARELLI: 06322592010, 0632 27502, MSN203,

632 275 02, 632 275 70, 632 275 92, 632 275 96, 9432 2520 75,

MSN 188, MSN 191, MSN 203, 943225275, MSN191, 063227502,

063227592, 54293284, 63227478, 63227486, 63227518, 63227520,

63227585, 63227592, 63227596, 63296357, 943226294, 943226329,

943226348, 943226357, 943226359, 943226366, 943226369,

943227502, 943227518, 943227520, 943227524, 943227570,

943227572, MSR191, 063227592010, 943252075, 63227502,

542 932 84, 632 274 78, 632 274 86, 632 275 18, 632 275 20,

632 275 85, 632 275 88, 632 963 57, 9432 262 94, 9432 263 29,

9432 263 48, 9432 263 57, 9432 263 59, 9432 263 66,

9432 263 69, 9432 275 02, 9432 275 18, 9432 275 20, 9432 275 24,

9432 275 70, 9432 275 72, 9432 520 75, 9432 520 76, MSN 180, 63227570,

9432252075, MSN188, 943241138, MSR203, 943252076, MSN180,

632 800 40, MSN8040, 27518, 9432 52075, 63227592010, 63227543,

63227588, 063227502010, 063227596010, 943252075010,

063227554, 63229357, 943225207, 943227575, 943227576

MANITOU: 109281, 561414, 561919, 745011

MASSEY FERGUSON: 1447732M1, 1447732R1, 3581576R1,

3851576M1, 3930508R1, 1446802M91, 1 446 802 M91, 1 447 732 R1

144773R1, 3581576M01A, 3581576M02A, 3581576M1,

3581576M3, 01102343M, 11023U3M, 16974U91M, 2873001T,

1447 773 R1, 2873 001 T, 3581 576 M01A, 3581 576 M02A,

3581 576 M1, 3930 508 R1, 3784889M2, 3784890M1, 3823621M91,

3551773M91, 3581576R01A, 3541730M91

PERKINS: 2873001, 2873A001, 2873B056, 2873A102, 2873A030,

2873A028, 1447 732 R1, 2873 B 056, 2873 B 071, 2635R, 1447732M1,

1873A053, 1873A056, 2873022, 2873D071, 2873E057, 2873E071,

37701400, 1446802M91, 1447732MI, 1447732R1, 3581576MI,

3581576R1, 1446 802 M91, 1447 732 MI, 1447 732 M1, 3581 576 M1,

3581 576 R1, 3581 576 MI, 2873001T, 28730056, 28730071,

28736071, 28738056, 2873A010, 2873A031, 2873D003, 28738071,

2873K404, 2873K621, 2873K632, 3586847, 2783A030, 2873001R,

2873B056R, 2878B071, 2873A001R, 2873D202

PRESTOLITE ELECTRIC: 20500968, 66925089, 20500161,

20500195, PBNS0195, PBNS0968, 20500302, 20500107

SCHAEFF: 5568656320, 5999999192

STEINBOCK: 055194, 4733539, 8823812, 51076912, 8150025, 9210758

YALE: 50046535, 50380618, 50380619, 5142756-00, 5142856-00

BOSCH: 0001367069, 0986018151, 0 986 018 151, 0 986 018 151 090,

986018151, 9 004 475 035, 0 001 367 069, 9004475035,

0 001 359 127, 0 001 362 327, 0 001 369 013, 0986050351,

BX1815, BX5035, 0986 018 151, F032CS0703, 9000143402,

0986018150, 0001367017, 0001367076, 0986017750

DELCO REMY: DRS3289, 600.009.102, DRS 1060, DRS 3289,

DRS1060, DRS3289N, 19024261, DRS0066, DRS3123

ELSTOCK: 250201, 26422, 27417, 27435, 27478, 27486,

27518, 27520, 27570, 27592, 25-0201, 25-0334, 25-3377, 250015

FIAT: 63227592

HC-PARTS: CS703, CS 703, CS1123, CS693, CS701

HITACHI: S1284

HONDA: 144773M1, SM1209, SM2513

LUCAS CAV: LRS00968, LRS01951, LRS01952, LRS161, LRS195,

LRS1956, LRS968, 27502, 27518, 27520, 27543, 27570, 27588,

LRS124, LRS302, NSB524, NSB529, LRS00124, LRS00161, LRS00195, LRS00302

LUCAS: 26294, 26357, 26369, 27502, 27506, 27518, 27570, 27585,

27588, 27592, 27596, LES0009, LRS00195, LRS00968, LRS 00 195,

LRS 195, LRS 968, 26025009B, 26925316A, LES0040, 26256963,

26357A, 26357B, 26357E, 26357R, 26925316B, 27506A, 27506D,

27518A, 27518B, 27518E, 27520, 27520A, 27520D, 27524, 27570A,

27570B, 27603, 27607, 27609, 27621, 27625, 27628, LRS00161,

NSB522, NSB524, 26294A, 26294AB, 26294D, 26294DE, 26294E,

26294FN, 26294N, 26357BE, 26357D, 26357H, 26369AH, 26369D,

27502B, 27502E, 27518AB, 27518AE, 27518F, 27518H, 27518J,

27570F, 27588A, LRS00134, NSB526, S5021, S5023, 24520,

27585A, LRS195, NSB529

ATL Autotechnik: A 18 150, A18150

HELLA: 730 219-001, 8EA730219-001, 8EA 730 219-001,

8EA730-219-001, 8EA730219001, CS703, 8EA 730 209-001,

8EA726084-001, CS 693, CS 703, 8EA730209-001, CS1123,

CS693, CS994, 8EA730217001, 8EA730209001, 8EA737585001

HERTH BUSS ELPARTS: 42 263 570, 42263570

HOLGER CRISTIANSEN: CS703, 110615, CS336, CS 703, CS701

SPIDAN: 4102, 0.004102

EUROTEC: 11018150EU, 11018150

FRIESEN: 8018151, 80 18 151

VALEO: 458383, 54244390, 455528

3K: 700.005.103, 700005103

EDR: DRS3289, 913289, 913289N, 913123, 911060

HERTH BUSS HEAVYPART: 42263570

QUINTON HAZELL: 8018151

REMY: DRS3289, 69404

MASSEY-FERG-HANOMAG: 1446 802 M91, 1447 732 R1,

3581576 M01A, 3581 576 M02A, 3581 576 M1, 3581 576 R1,

3930 508 R1, 1447732R1, 3581576R1, 3930508R1, 1446802M91,

3581576M01A, 3581576M02A, 3581576M1, 2873001T

AUGROS: 23242019

DELTA: A 18 150, A18150, 01092310

DOYEN: DST18151, DST1953643

FERODO: 27592D, 27593

RENAULT: 37701400

ARTEC: 48212894

CASCO: CST25101, CST25101AS, CST25101ES, CST25101GS,

CST25101OS, CST25101RS, CST25134, CST25134AS,

CST25134ES, CST25134GS, CST25134OS, CST25134RS

MESSMER: 220006

CLAAS: 315975.0, 320007, 3159750, 6005706629

HANOMAG RHEINSTAHL: 4917271T

HERTH BUSS JAKOPARTS: 42263570

JCB (BAMFORD): 714-29300, 714-40006R, 26294, 26343,

714/29300R, 714/40006

TRISCAN: 22-600-009-102, 22600009102

EFEL: EF19823, EF19823N

AD KUHNER: 10703, 10703B, 10703D, 10703H,

10703M, 10703V, 10701, 254049

ERA: 220006A, 220006B, 220006HQ,

220006R, SLU-7804, 220006

HC-Cargo: 110615, 113534, 113654, 110459, 111737

KAGER: 72-0360, 72-0459

CASE IH: 234 986 A1, 3881 86 A2, 73328002,

234986A1

DELPHI: 27 518, 27 520, 27 570, 27 588, LRS00124,

LRS00161, LRS00195, LRS00968, NSB 524, NSB 529,

LRS00302

MC CORMICK: 388186A1, 388186A2, 388186A3

AGCO: C000900060090, 378 4890 M1, 1029405

DA SILVA: 020814

EAI: 33364, 364ST33, 4098D

FENWICK: FMR8107036

SNRA: PL9031

CEVAM: DEM937, SBO1037, SMA1005, DEM708040

CATERPILLAR: 2253148, 3127539

DENSO: 428000-1380

SISU: 836867365

555: 250201, 36105, 50046535, 50380618, 50380619,

745011, 91178879, 9142728, H453, JST1110,

S7240, STR25016, TS4029

BOMAG: 31400116

GENERAL RICAMBI: 039057

LEYLAND: S123, S125

OPTILUX: CS703

SCHMITZ CARGOBULL: 110615HC

ACDelco: DRS3289

SKODA: 443 115 142 720, 443115142720

TOYOTA: 9 142 720, 9142720

TTV: 9 13 289, 9 18 150

AS-PL: S4013, S9051, EAA-121174, RNL195,

STR25016, 42263570, 9142720

PowerMax: 8212894

ALANKO: 440230, 441271

AINDE: CGB23289, CGB50201, CGB23124, CGB50015

SANDO: 6025101, 6025101.0, 6025101.1,

6025134, 6025134.0, 6025134.1

CAMPRO: CPA17280

PAL: 443115142723, 9142723, 9142728, 9142720

MAZDA: 32048921

CARQUEST: 17649S

CONTIS: CNS018151

TRW: LRS968

MAHLE ORIGINAL: 72735975, MS347,

72735923, MS295, 72735649, MS21
