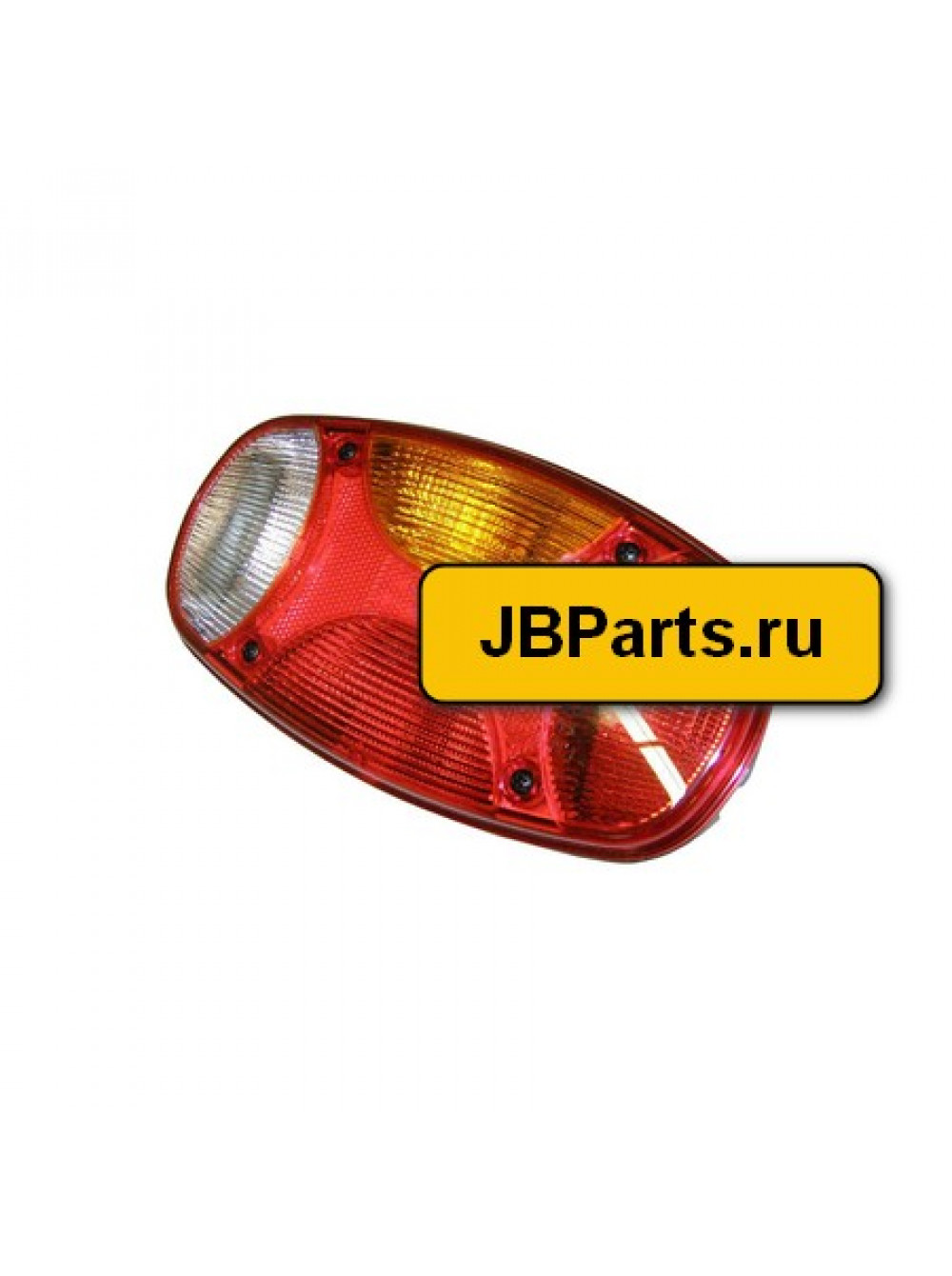

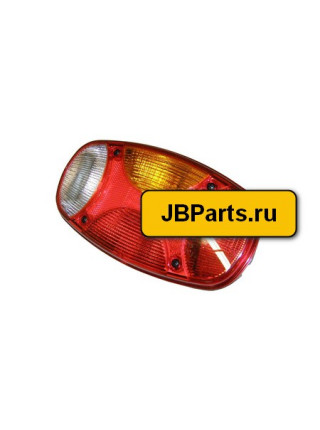

Задняя фара Manitou 259356 (Правая)
Shape of the rear light
oval
Total length (L1) (mm)
226
Length of the housing surrounding the lens (L2) (mm)
226
Total height (H1) (mm)
122
Height of the housing surrounding the lens (H2) (mm)
122
Total width (W1) (mm)
76
Width of the housing surrounding the lens (W2) (mm)
23
Bracket present
NO
Position of attachment
built-up
Horizontal mounting
YES
Vertical mounting
NO
Number of mounts
2
Type of mounting
bolt
External thread size
M6
Metric pitch of the external thread (mm)
1
Right thread/left thread of the external thread
right hand thread
Longest centre distance of the mounting holes (C1) (mm)
72
Minimum voltage (U1) (V)
12
Maximum voltage (U2) (V)
12
Number of connectors
1
Number of pins in the connector
6
Rear light present
YES
Stoplight present
YES
Indicator light present
YES
Reversing light present
YES
Fog light present
NO
Licenseplate light present
NO
Reflector present
YES
Triangular reflector
NO
Right side/left side/both sides mountable
right side
Bulbs included
YES
Replaceable lens
YES
Material of the lens
plastic
Type of technology
incandescent
Вес (кг): 0,68
