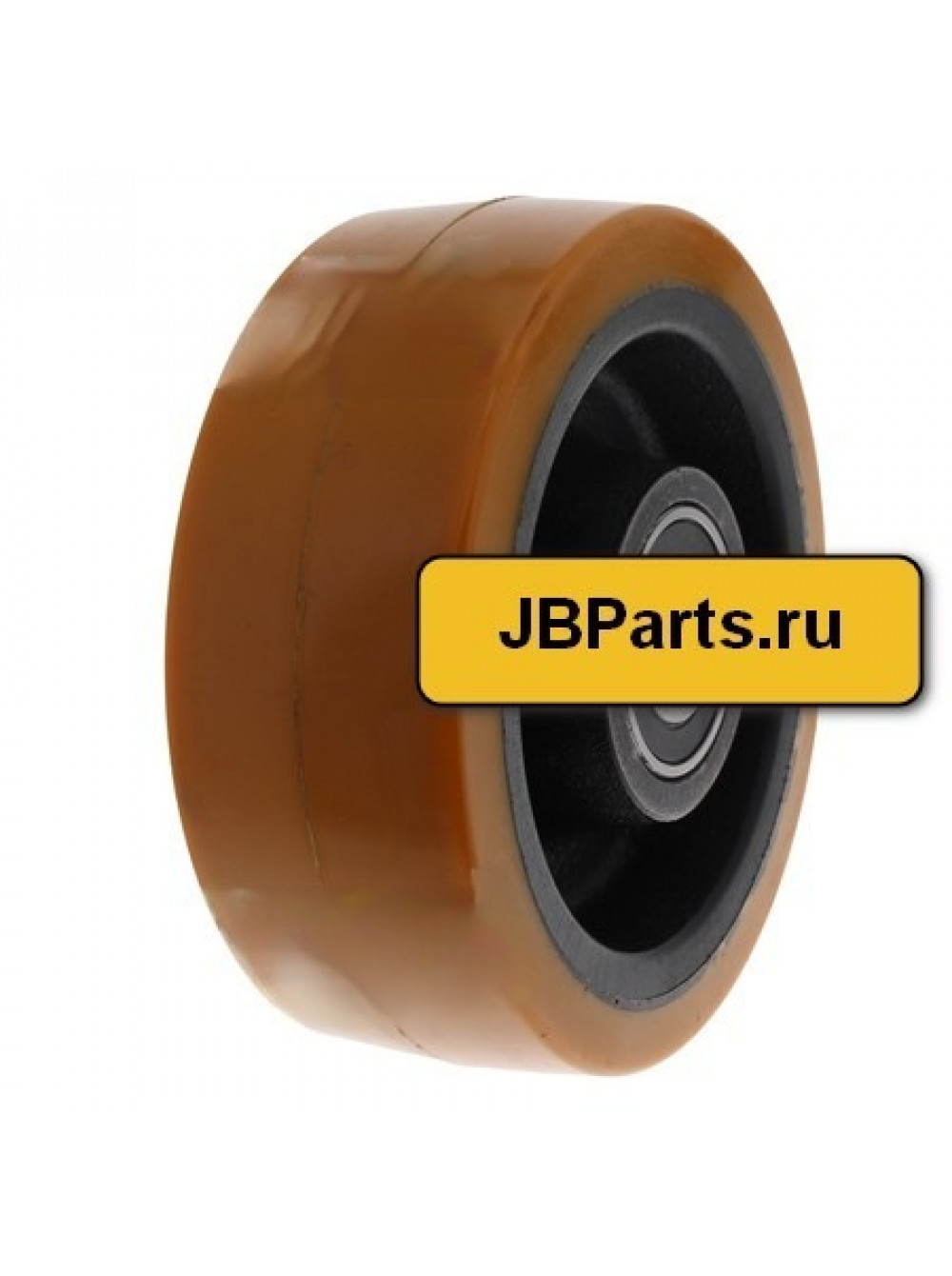

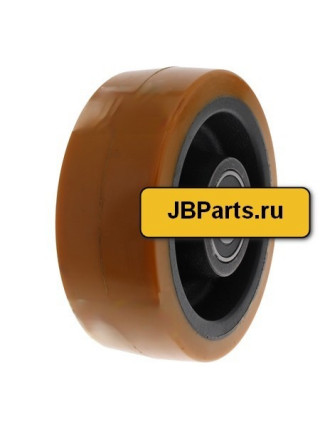

Грузовое колесо Noblelift 533298510003
Sort of wheel
standard wheel
Mounting of the wheel
with bearing
Diameter of the wheel D1 (mm)
150
Width of the wheel W1 (mm)
54
Diameter of the bearing chamber 1 D3 (mm)
47
Depth of the bearing chamber 1 H1 (mm)
14
Diameter of the bearing chamber 2 D4 (mm)
47
Depth of the bearing chamber 2 H2 (mm)
14
Type of bearing 1 (prefix)
6204
Subtype of bearing 1 (suffix)
RS
Shaft diameter 1 D5 (mm)
20
Type of bearing 2 (prefix)
6204
Subtype of bearing 2 (suffix)
RS
Shaft diameter 2 D6 (mm)
20
Sort of bearing
standard bearing
Material of the bearing
steel
Hub length L-HUB (mm)
58
Clamping length L-CLA (mm)
58
Material of the wheel (grouped)
polyurethane
Material of the rim
cast iron
Diameter of the rim D2 (mm)
123
Width of the rim W2 (mm)
54
Shape of the tread
crowned
Wheel profile
smooth
Rim and tyre
NO
Gear ring present
without gear ring
Number of bearings
2
Groove for circlip present
NO
Reduction bushing present
NO
Bushing between bearings present
no
Suitable for coldstore use
NO
One side closed
NO
Thread guards (FA-ready)
without thread guards
Grease nipple present
without grease nipple
Вес (кг): 6,64
