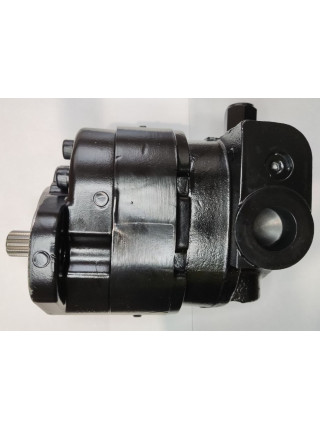

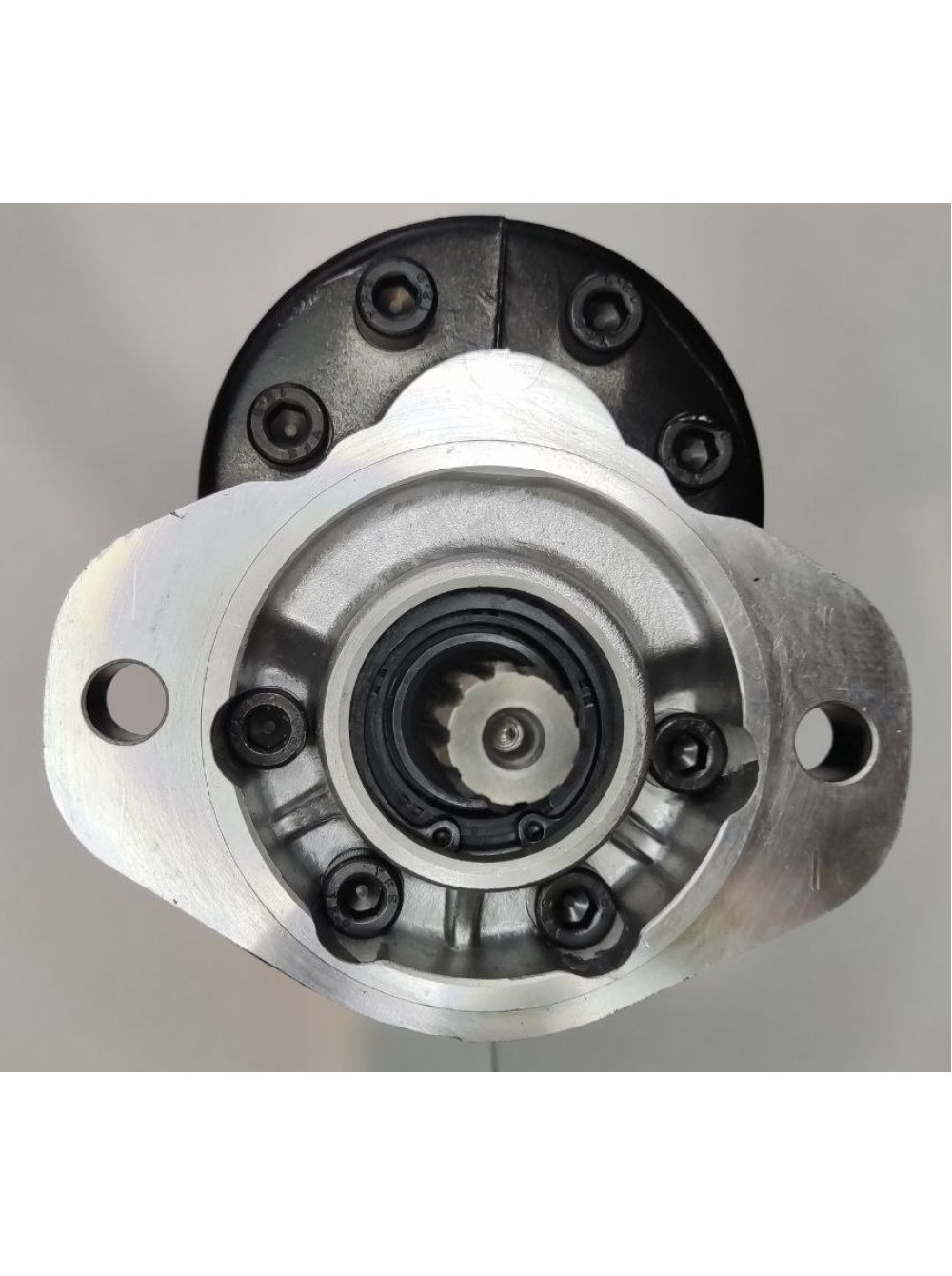

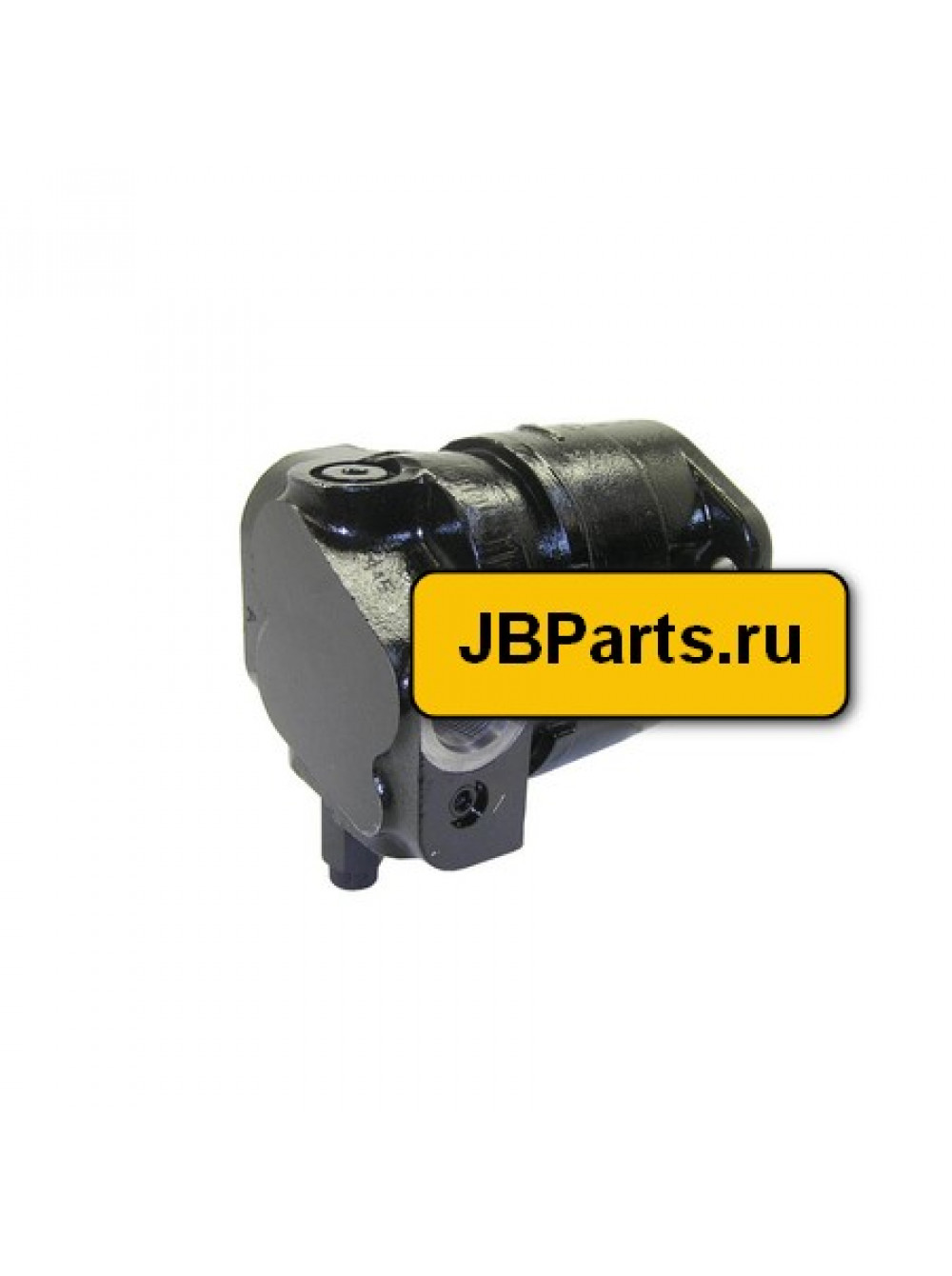

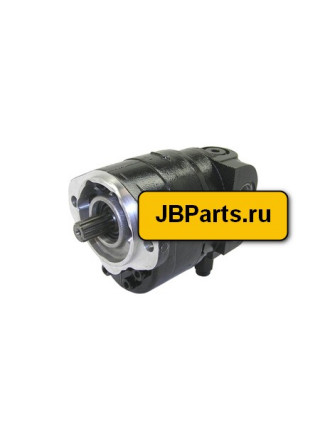

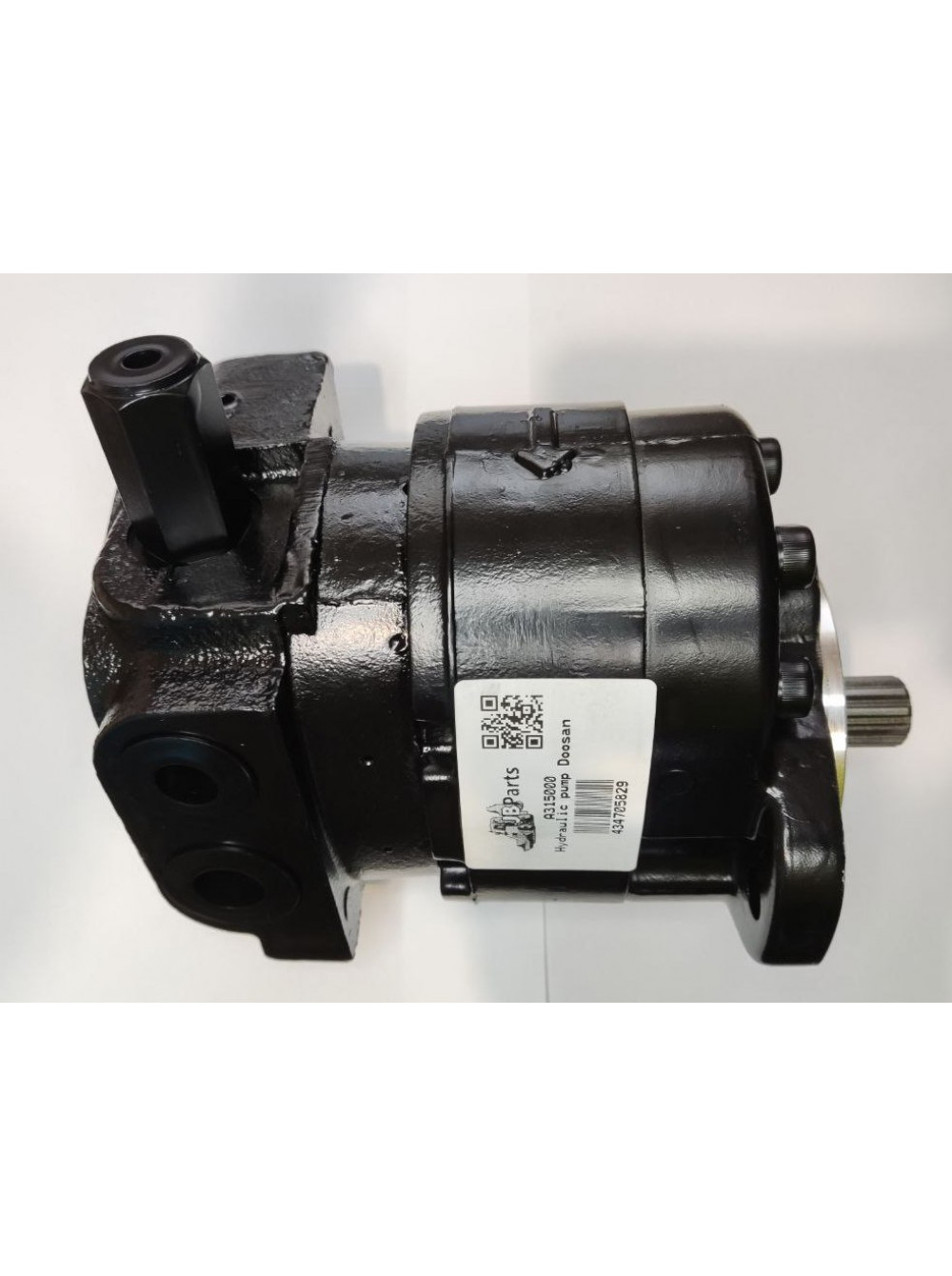

Насос гидравлический Doosan A315000

Насос гидравлический Doosan / Daewoo A315000

Type of pump

gearpump

Number of elements

1

Type of flange

type A

Diameter of flange mounting holes D1 (mm)

11.7

Center distance of mounting holes C1 (mm)

106.3

Total length of pump L1 (mm)

192

Neck diameter D2 (mm)

82.5

Type of shaft

type D

Distance from flange to end L2 (mm)

32

Diameter of shaft D3 (mm)

18.4

Number of splines

11

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type E

Thread type suction side of 1st element TA-Pa

1 5/16 UNF

Flow control valve present

YES

Biggest Thread type valve TA3

7/8 UNF

Second Thread type valve TA4

3/4 UNF

Material of the housing

aluminium

Вес (кг): 8,1
