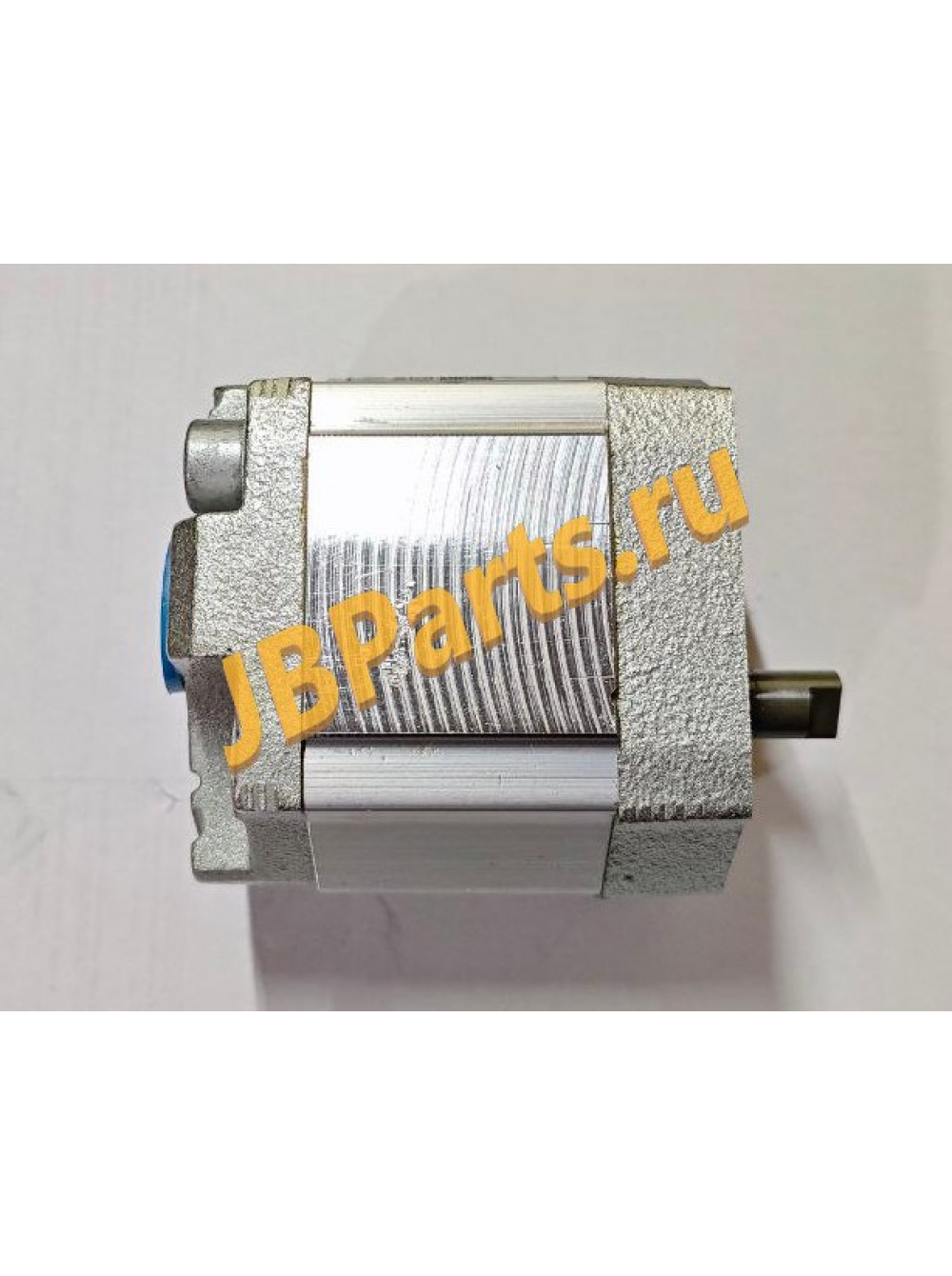

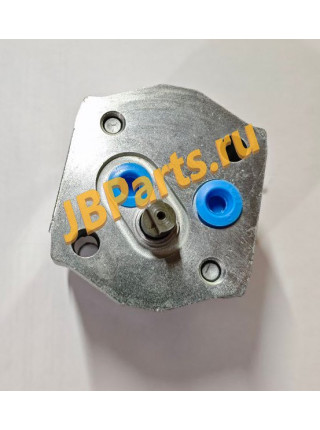

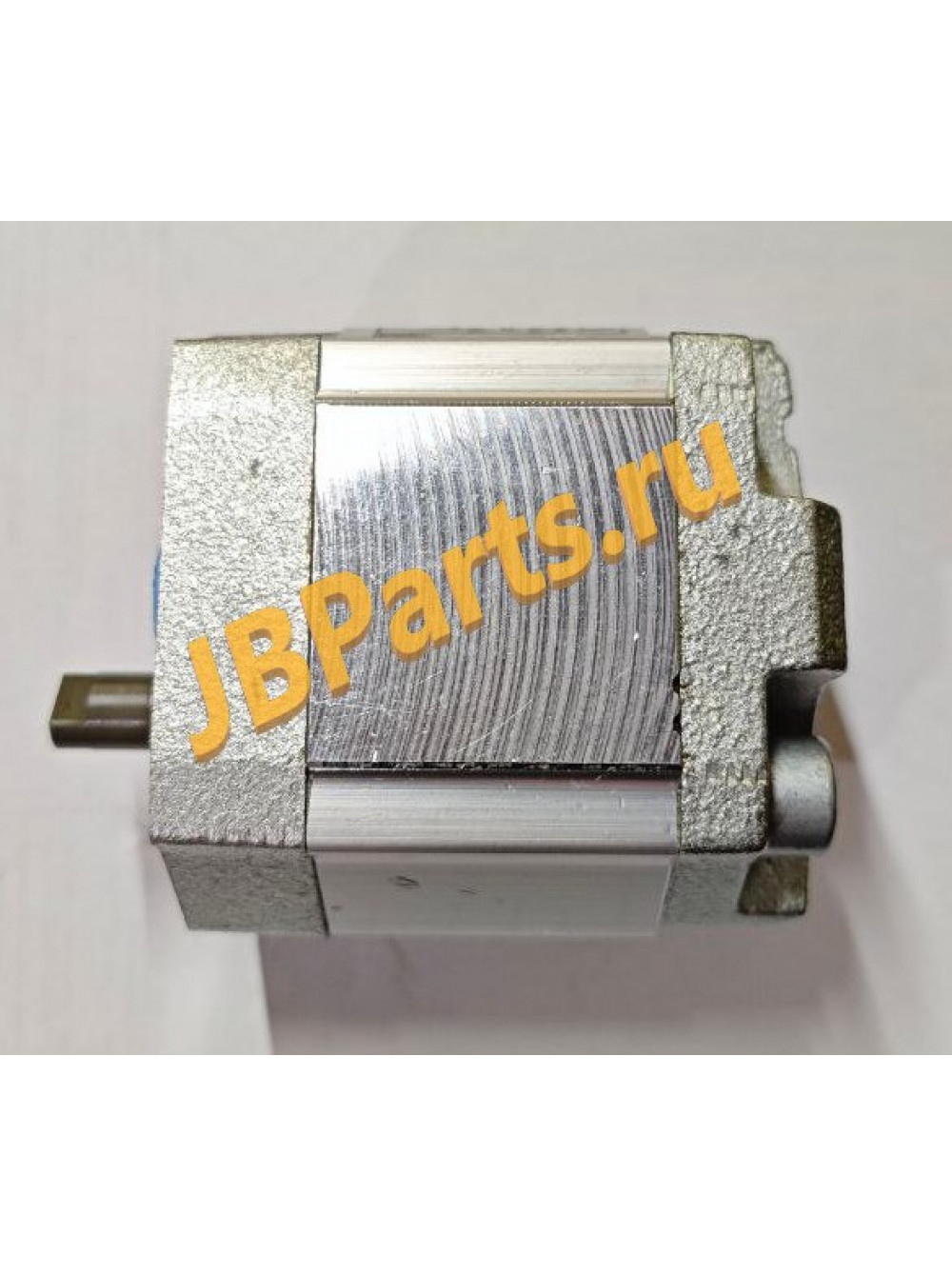

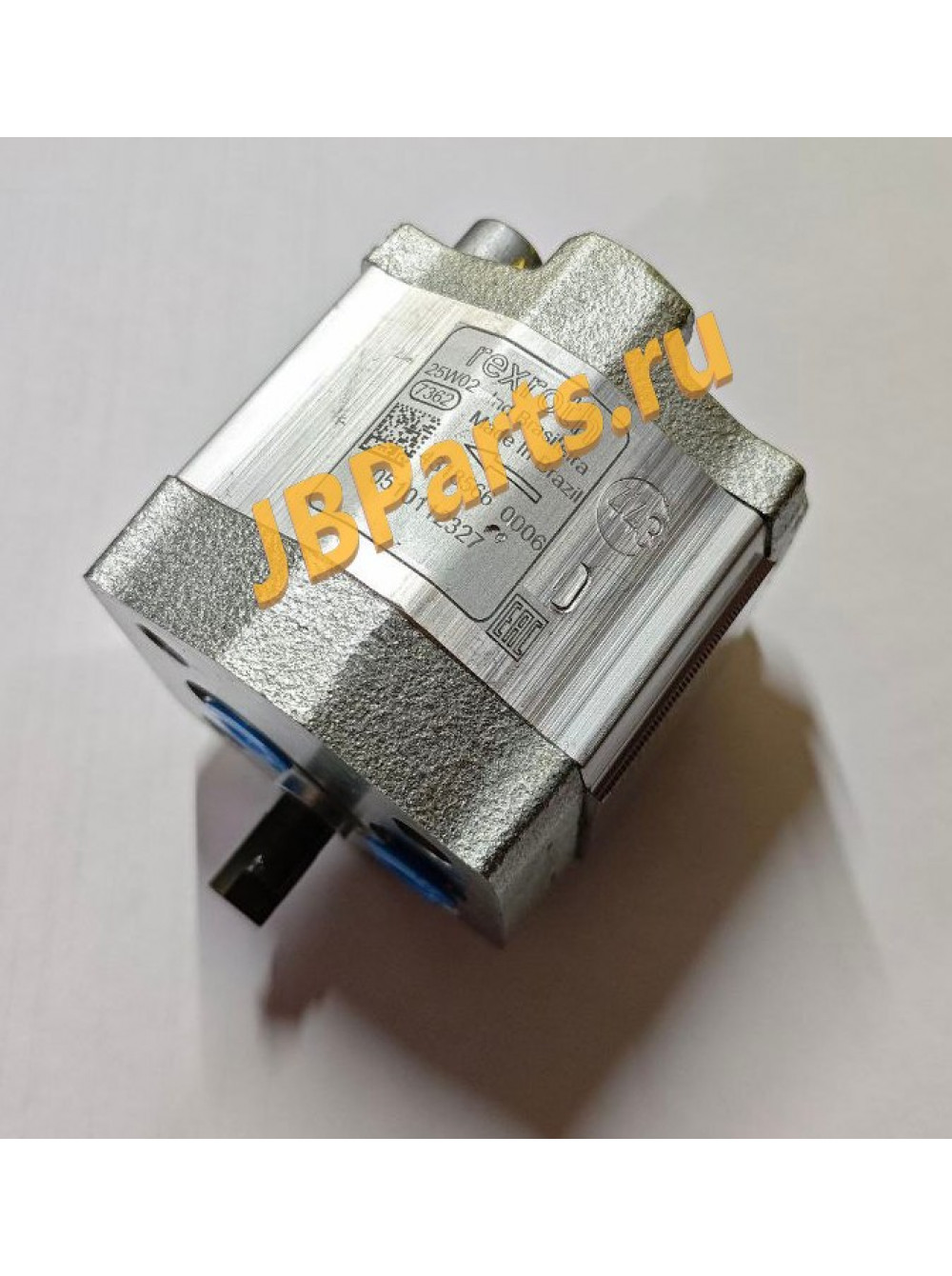

Гидравлический насос Bosch 1517222874

Гидравлический насос Bosch 1517222874

AZPB-10-2.0LNEXXMA-S0073

0510112327

Type of pump

gearpump

Number of elements

1

Type of flange

type C

Diameter of flange mounting holes D1 (mm)

9

Total length of pump L1 (mm)

95

Type of shaft

type B

Distance from flange to end L2 (mm)

18.5

Diameter of shaft D3 (mm)

9.8

Key (way) width W (mm)

5

Direction of rotation

counterclockwise

Position of suction port 1st element, only for pump type T POS-CO1

rear

Type of connections suction port1st element, only for pump type T TY-COa

type F

Position of pressure 1st element, only for pump type T POS-CO2

front

Type of connections pressure 1st element, only for pump type T TY-COb

type F

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 1,42

1518222323 1 518 222 323

1517222670 1 517 222 670

1547220502 1 547 220 502

2002803M

2469H

HP3157

3581P

MBB 1058831
