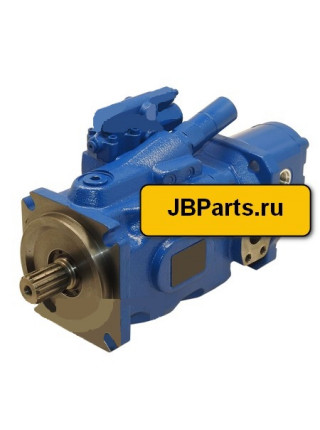

Гидравлический насос JCB 332/F3925

Гидравлический насос JCB 332/F3925

332F3925

Rexroth R902483195

AL A10VO63LA8DS/53L-VSD12H00-S2687

D-72160 Horb

Type of pump

plunger pump

Number of elements

2

Type of flange

type G

Center distance of mounting holes C1 (mm)

114.5

Total length of pump L1 (mm)

410

Neck diameter D2 (mm)

127

Type of shaft

type E

Distance from flange to end L2 (mm)

55

Diameter of shaft D3 (mm)

31

Number of splines

14

Thread type (on shaft) TA2

5/16 UNC

Direction of rotation

counterclockwise

Thread type of connections suction 1st element

M12

Center distance between mounting holes C-CO1a (mm)

42.9

Center distance between mounting holes C-CO2a (mm)

77.8

Thread type of connection pressure port 1st element TA-COb

M10

Center distance between mounting holes C-CO1b (mm)

26.2

Center distance between mounting holes C-CO2b (mm)

52.4

Position of suction port 2nd element, only for pump type T POS-CO3

side

Type of connections suction port 2nd element, only for pump type T TY-COc

type E

Thread type suction side of 2nd element TA-Pc

1 1/16 UNF

Position of pressure port 2nd element, only for pump type T POS-CO4

side

Type of connections pressure port 2nd element, only for pump type T TY-COd

type E

Thread type pressure side of 2nd element TA-Pd

7/8 UNF

Flow control valve present

YES

Biggest Thread type valve TA3

7/16 UNF

Material of the housing

aluminium and metal

Вес (кг): 36
