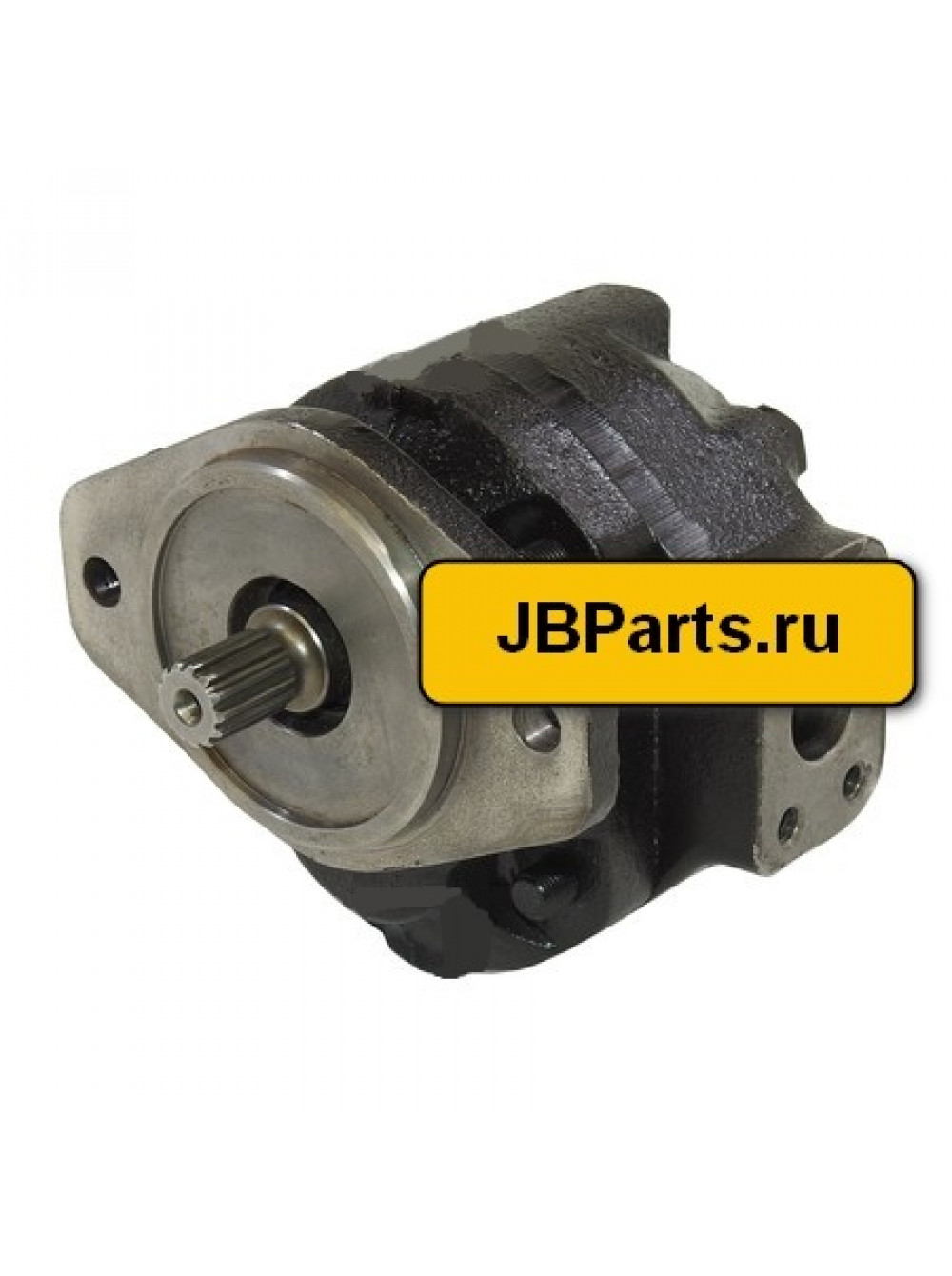

Гидравлический насос Sanderson P2AP1907B2B50A
p2ap1907b2b50a
SANDERSON TELEPORTER 33,43A
SANDERSON 1003998
DAVID BROWN GEAR PUMP B0319120311
Type of pump
gearpump
Number of elements
1
Type of flange
type A
Diameter of flange mounting holes D1 (mm)
14
Center distance of mounting holes C1 (mm)
146
Total length of pump L1 (mm)
192
Neck diameter D2 (mm)
101.5
Type of shaft
type D
Distance from flange to end L2 (mm)
41
Diameter of shaft D3 (mm)
21.5
Number of splines
13
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type C
Thread type of connections suction 1st element
7/16 UNC
Center distance between mounting holes C-CO1a (mm)
30.2
Center distance between mounting holes C-CO2a (mm)
58.7
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type C
Thread type of connection pressure port 1st element TA-COb
3/8 UNC
Center distance between mounting holes C-CO1b (mm)
26.2
Center distance between mounting holes C-CO2b (mm)
52.4
Flow control valve present
NO
Material of the housing
metal
Вес (кг): 17,65
