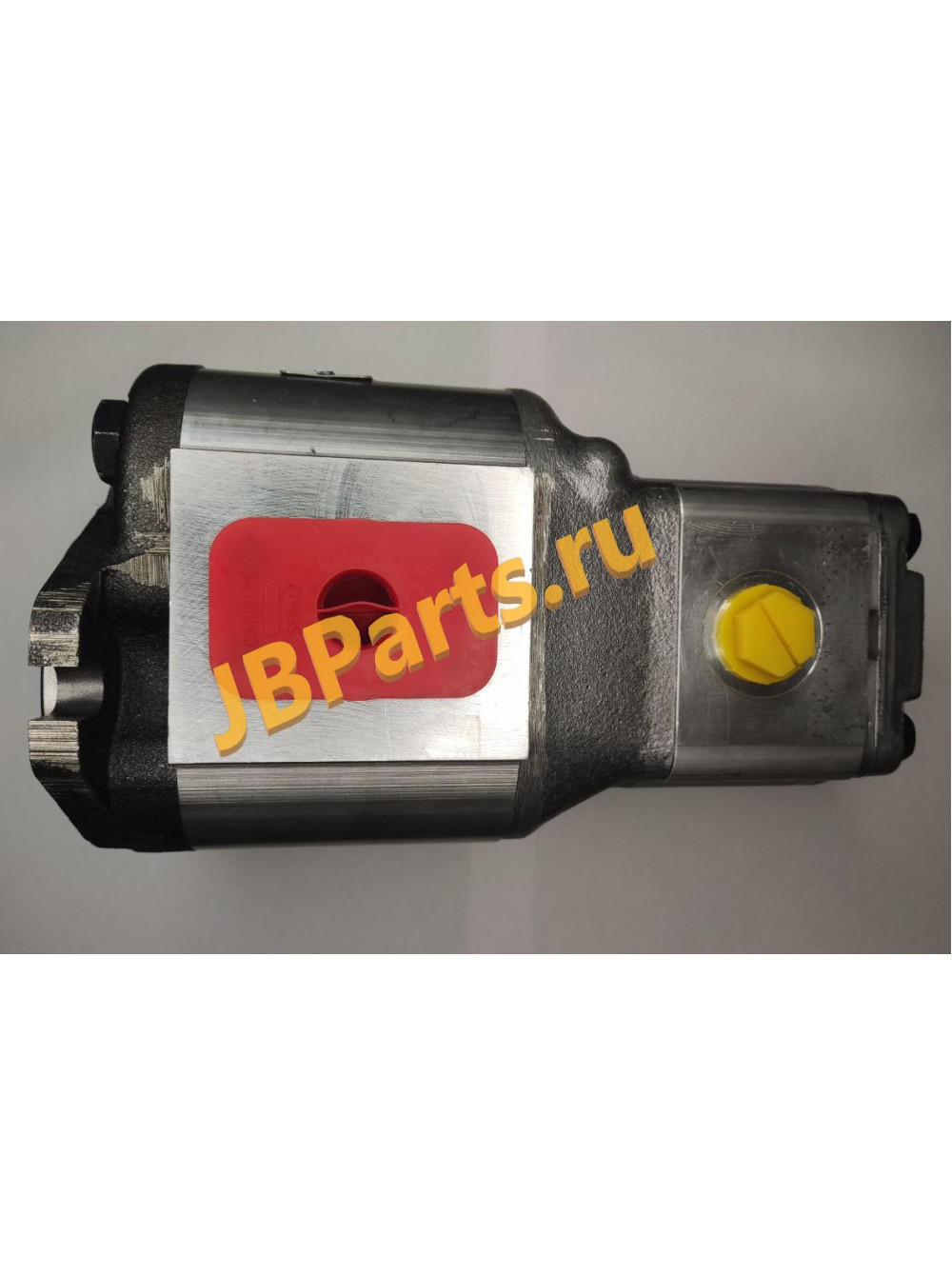

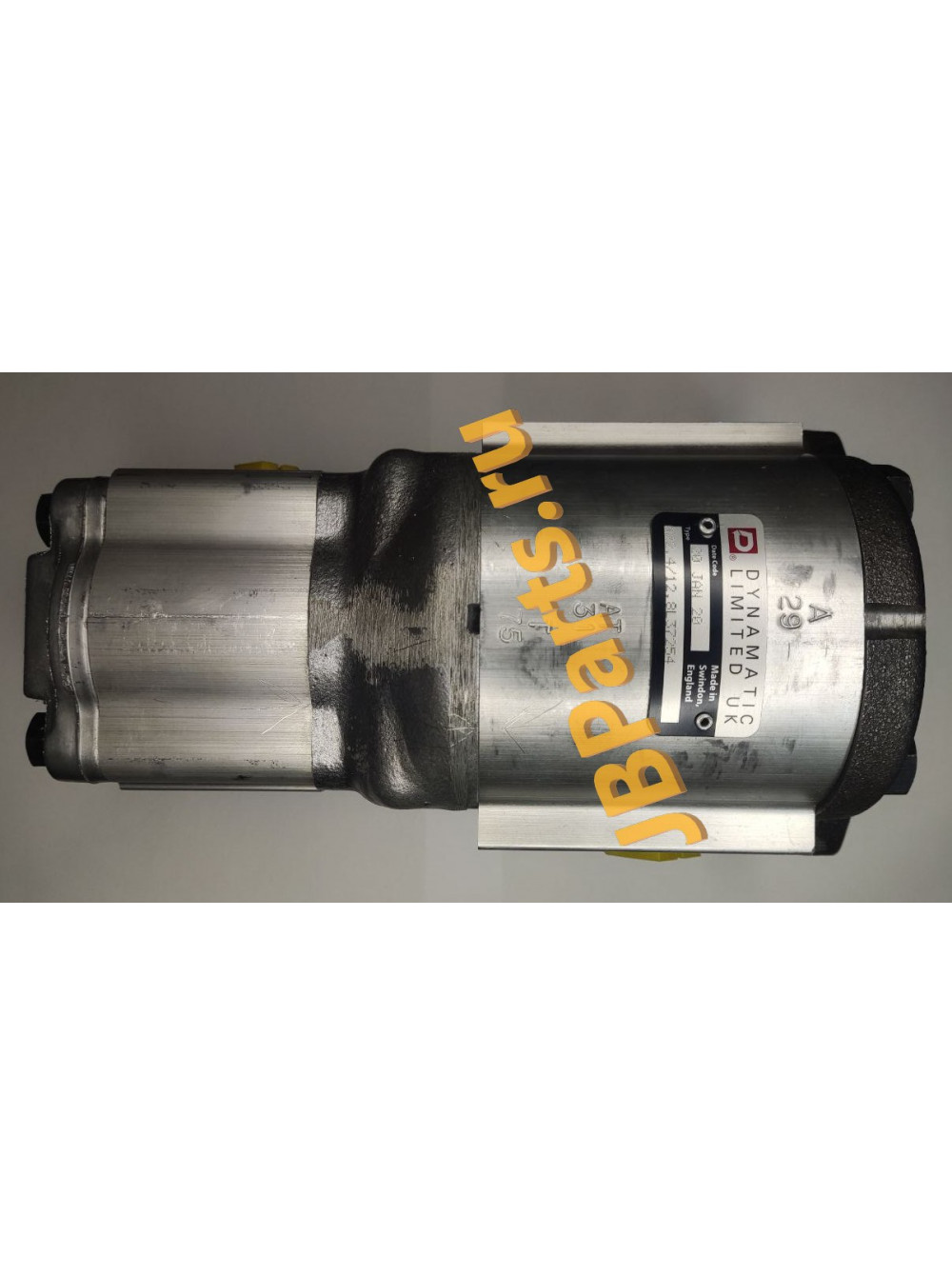

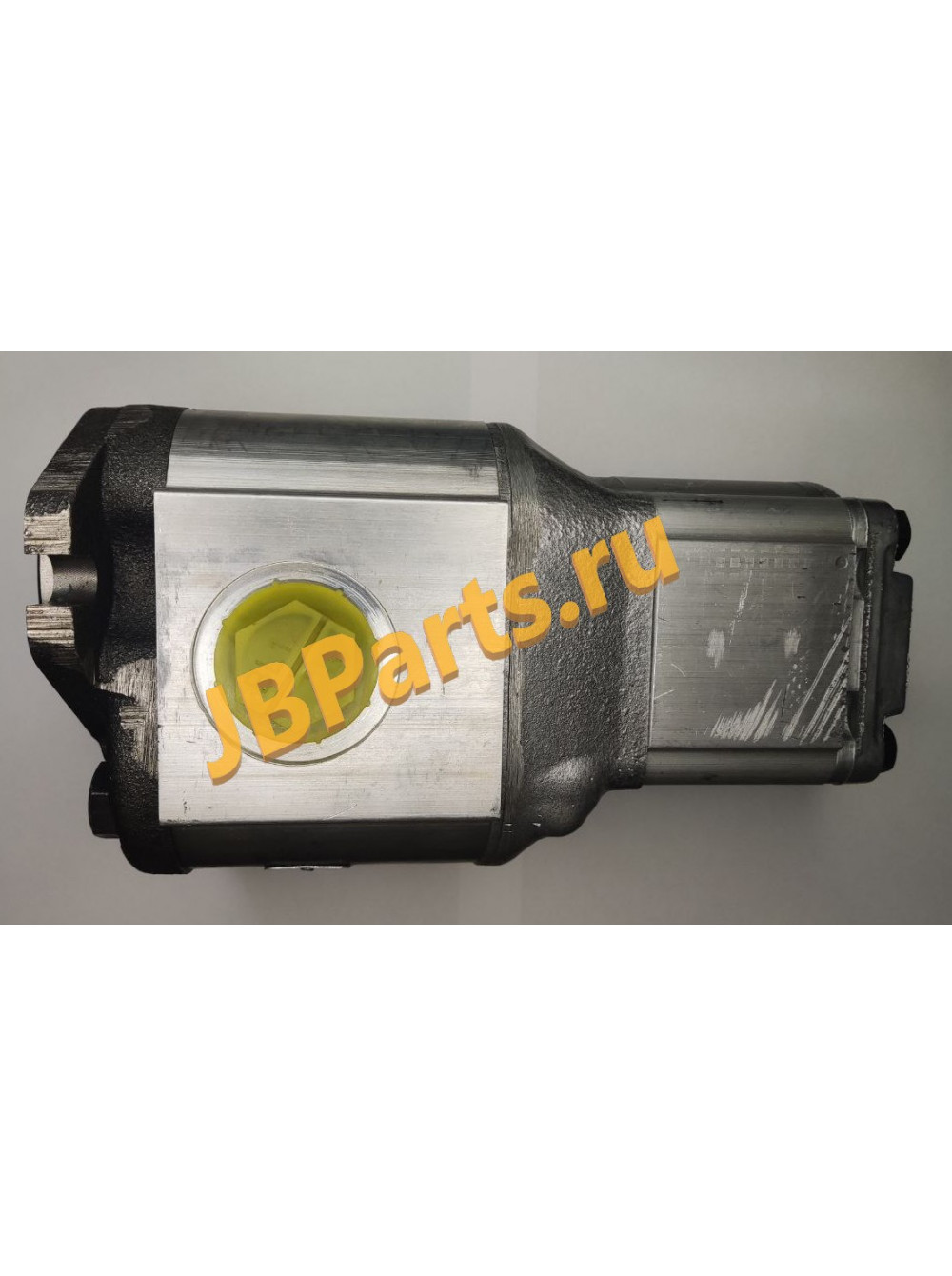

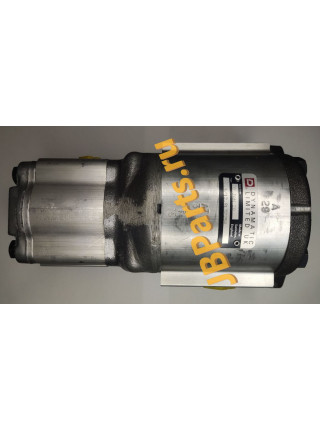

Гидронасос Bobcat 6673913

Гидронасос Bobcat 6673913

6672830

A22.4/12.8L 36981

A224128L36981

A22.4/12.8L 37254

A224128L37254

SAUER DANFOSS
DYNAMATIC UK
BOSCH REXROTH

Type of pump gearpump

Number of elements 2

Type of flange type B

Center distance of mounting holes C1 (mm) 106.2

Total length of pump L1 (mm) 241

Neck diameter D2 (mm) 82.5

Type of shaft type D

Distance from flange to end L2 (mm) 14

Diameter of shaft D3 (mm) 18

Number of splines 11

Direction of rotation counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1 side

Type of connections suction port1st element, only for pump type T TY-COa type E

Thread type suction side of 1st element TA-Pa 1 5/16 UNF

Position of pressure 1st element, only for pump type T POS-CO2 side

Type of connections pressure 1st element, only for pump type T TY-COb type D

Thread type of connection pressure port 1st element TA-COb 3/8 UNC

Center distance between mounting holes C-CO1b (mm) 48

Center distance between mounting holes C-CO2b (mm) 22

Position of pressure port 2nd element, only for pump type T POS-CO4 side

Type of connections pressure port 2nd element, only for pump type T TY-COd type E

Thread type pressure side of 2nd element TA-Pd 7/8 UNF

Flow control valve present NO

Material of the housing aluminium

Вес (кг) 8

T/9390423
