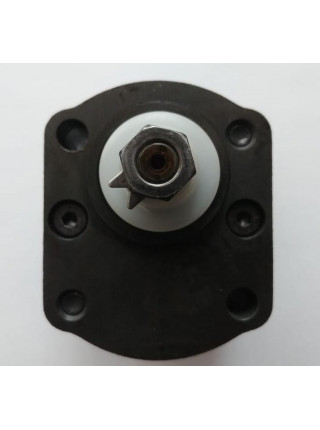

Гидронасос Bosch 0510515309

Гидронасос Bosch 0510515309

0 510 515 309

AZPF-12-011LCP20KB-S0007

Type of pump

gearpump

Number of elements

1

Type of flange

type D

Diameter of flange mounting holes D1 (mm)

10.8

Total length of pump L1 (mm)

130

Neck diameter D2 (mm)

50

Type of shaft

type G

Distance from flange to end L2 (mm)

40.2

Diameter of shaft D3 (mm)

13.7

Key (way) width W (mm)

3

Thread type (on shaft) TA2

M12

Direction of rotation

counterclockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type A

Thread type of connections suction 1st element

M6

Center distance between mounting holes C-CO1a (mm)

40

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type A

Thread type of connection pressure port 1st element TA-COb

M6

Center distance between mounting holes C-CO1b (mm)

35

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 3,08

T/38973109

Номера замен:

• 0510515333
• G150403101012
• G131861010010
• 0510512302
• 0510510304
• G144940013011
• 0510515305
• 0510510312
• G297940010010
• 1174517
• 517615305
• 1261595
• 1261639
