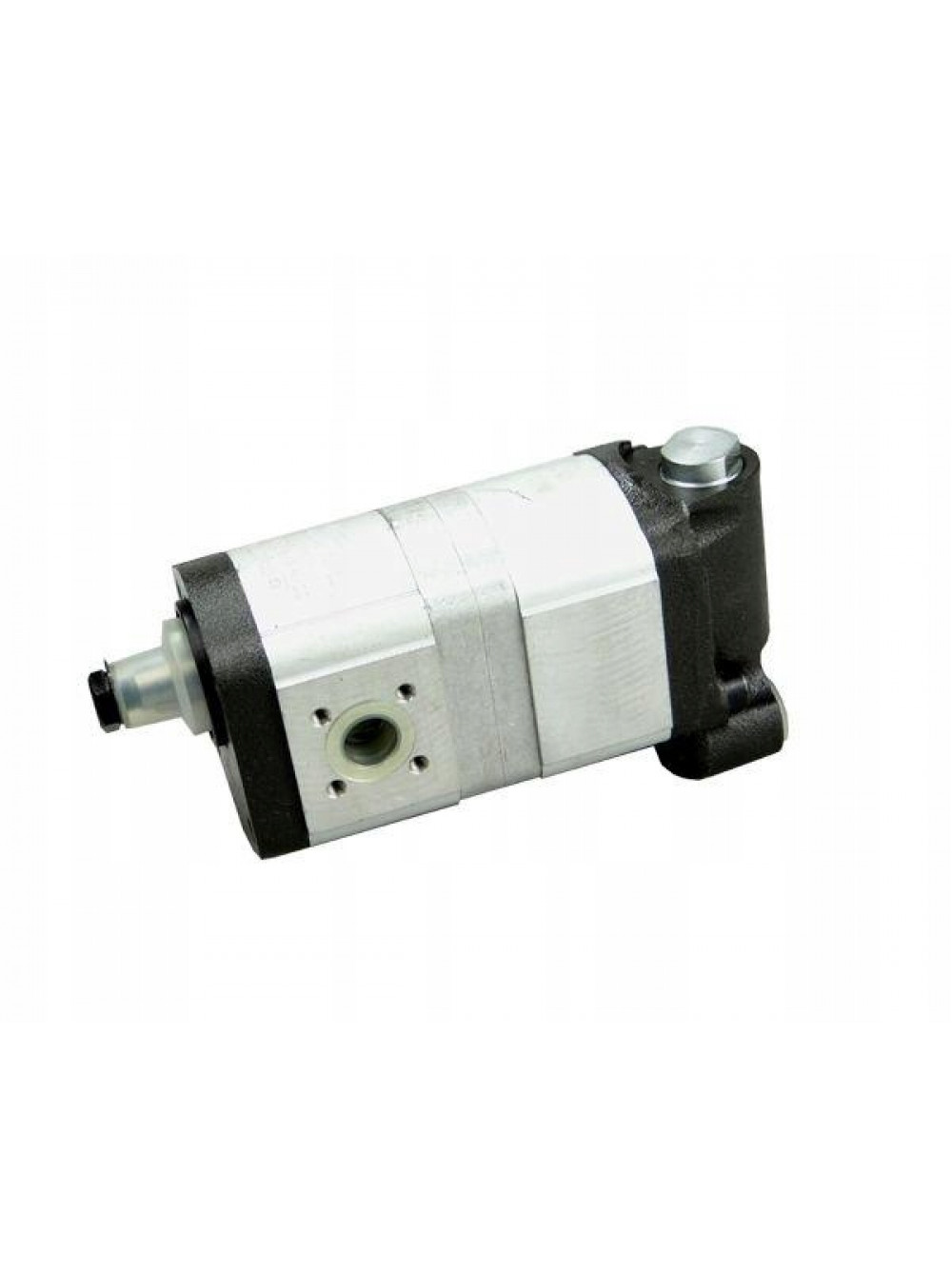

Гидронасос CASE 3142563R91
3142564R91
3145619R92
3142563R91
Rexroth 05104653535
22A8.2/8.2X653
Type of pump
gearpump
Number of elements
2
Type of flange
type C
Diameter of flange mounting holes D1 (mm)
12
Total length of pump L1 (mm)
233
Neck diameter D2 (mm)
50
Type of shaft
type G
Distance from flange to end L2 (mm)
34
Diameter of shaft D3 (mm)
14
Key (way) width W (mm)
3
Thread type (on shaft) TA2
M12
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type A
Thread type of connections suction 1st element
M6
Center distance between mounting holes C-CO1a (mm)
40
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type A
Thread type of connection pressure port 1st element TA-COb
M6
Center distance between mounting holes C-CO1b (mm)
35
Flow control valve present
YES
Biggest Thread type valve TA3
M18
Second Thread type valve TA4
M18
Material of the housing
aluminium
Вес (кг): 5,75
