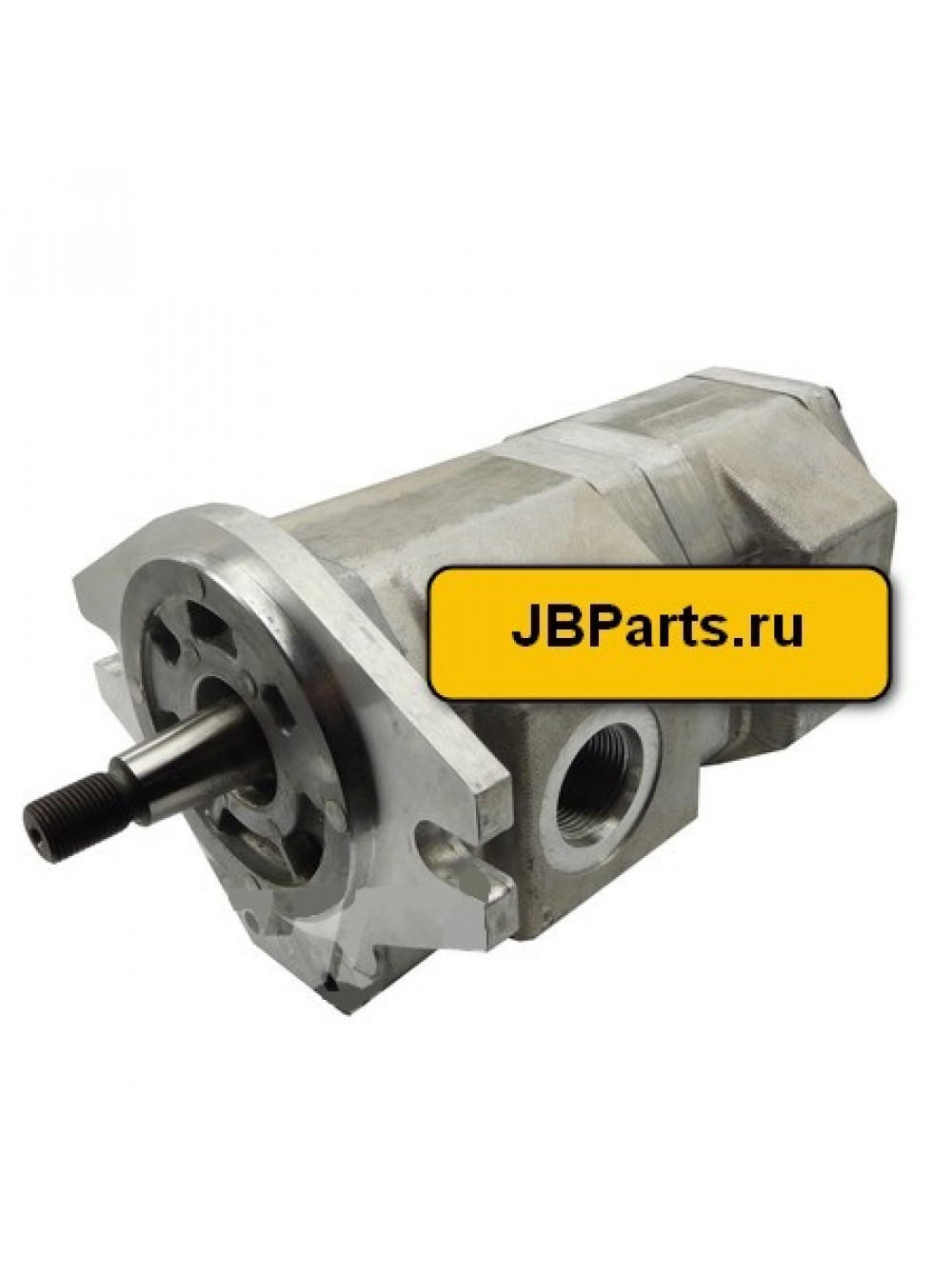

Гидронасос Cat 8J8813
111 ₽
Гидронасос Cat 8J8813
Описание
Гидронасос CAT 8J8813
8J-8813
233433375156
| Type of pump | gearpump |
|---|---|
| Number of elements | 2 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 146 |
| Total length of pump L1 (mm) | 300 |
| Neck diameter D2 (mm) | 101.5 |
| Type of shaft | type G |
| Distance from flange to end L2 (mm) | 57 |
| Diameter of shaft D3 (mm) | 19 |
| Thread type (on shaft) TA2 | 5/8 UNF |
| Direction of rotation | clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type C |
| Thread type of connections suction 1st element | 7/16 UNC |
| Center distance between mounting holes C-CO1a (mm) | 30 |
| Center distance between mounting holes C-CO2a (mm) | 58.7 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type E |
| Thread type pressure side of 1st element TA-Pb | 1 5/16 UNF |
| Position of pressure port 2nd element, only for pump type T POS-CO4 | side |
| Type of connections pressure port 2nd element, only for pump type T TY-COd | type E |
| Thread type pressure side of 2nd element TA-Pd | 1 1/16 UNF |
| Flow control valve present | NO |
| Material of the housing | aluminium |
