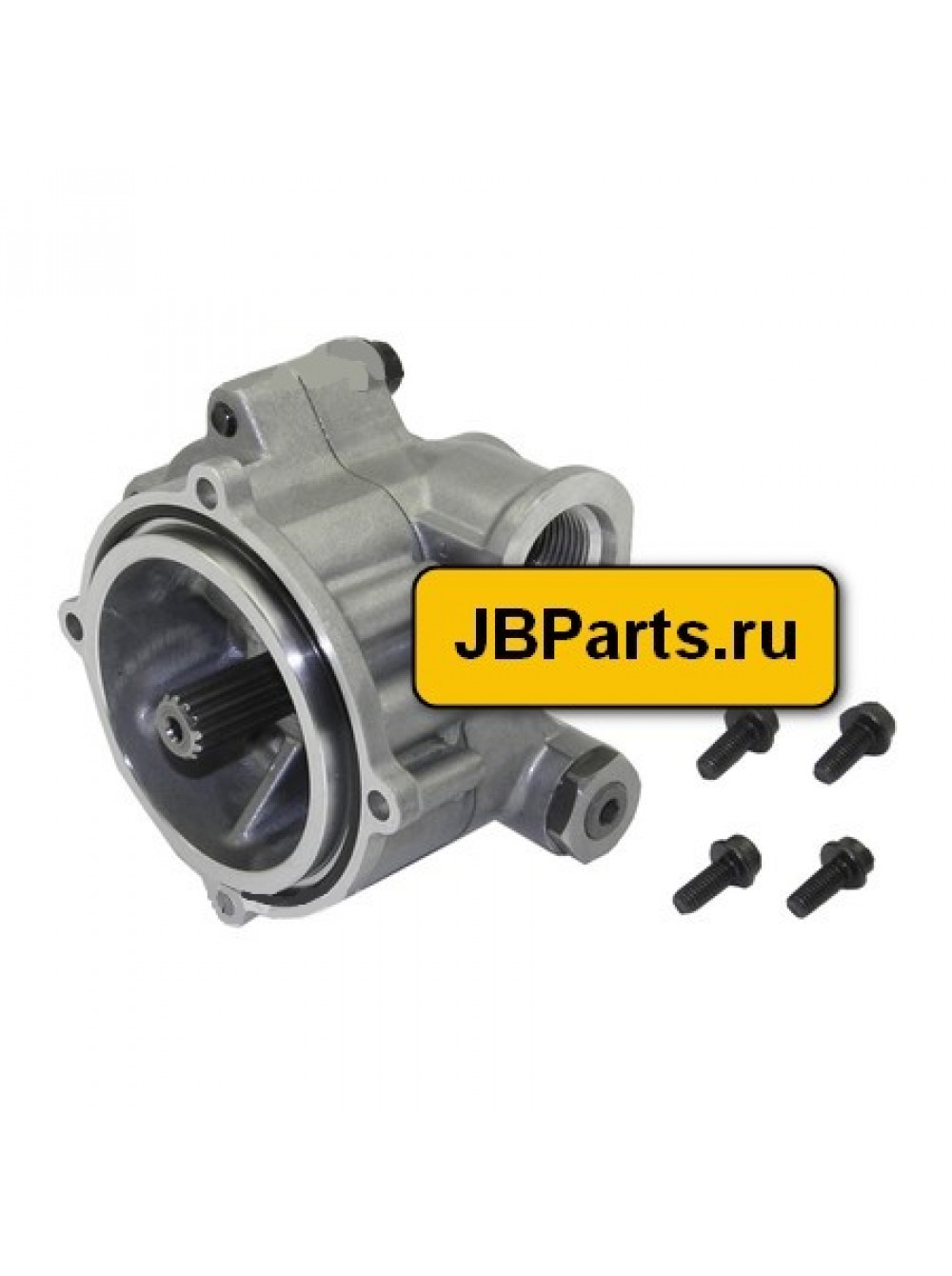

Гидронасос JCB 20/950961

Гидронасос JCB 20/950961

332/C1080

20950961

332C1080

Пилотный насос для Kawasaki K5V80DTP

20/951074 20/951074R 20/950329 FAJ0225 KNJ0605 20/925755

20951074 20951074R 20950329 20925755

Type of pump

gearpump

Number of elements

1

Type of flange

special

Diameter of flange mounting holes D1 (mm)

6.5

Center distance of mounting holes C1 (mm)

100

Total length of pump L1 (mm)

94

Neck diameter D2 (mm)

80

Type of shaft

special

Distance from flange to end L2 (mm)

11

Diameter of shaft D3 (mm)

14.6

Number of splines

13

Direction of rotation

clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type E

Thread type suction side of 1st element TA-Pa

1/2 BSP

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

3/4 BSP

Flow control valve present

NO

Material of the housing

aluminium

Вес (кг): 1,62
