| Диаметр вала15 мм | Вес5,65 кг | Количество секций2 |
| Направление вращенияпротив часовой | Общая длина насоса216 мм | Расстояние между крепежными отверстиями на фланце99.6 мм |
3701005M91
3595202M91
3597692M91
3597706M91

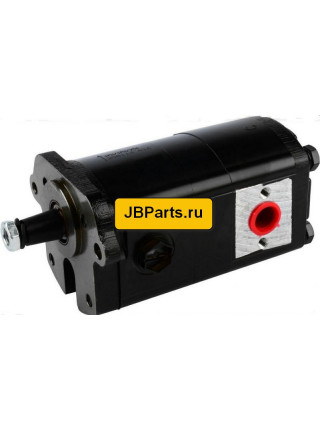

Type of pump
gearpump
Number of elements
2
Type of flange
special
Diameter of flange mounting holes D1 (mm)
10
Thread type of mounting holes TA1
3/8 UNC
Center distance of mounting holes C1 (mm)
99.6
Total length of pump L1 (mm)
216
Neck diameter D2 (mm)
52.4
Type of shaft
type G
Distance from flange to end L2 (mm)
39.5
Diameter of shaft D3 (mm)
15
Key (way) width W (mm)
3
Thread type (on shaft) TA2
M12
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type E
Thread type suction side of 1st element TA-Pa
M18
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
M18
Position of suction port 2nd element, only for pump type T POS-CO3
side
Type of connections suction port 2nd element, only for pump type T TY-COc
type I
Position of pressure port 2nd element, only for pump type T POS-CO4
side
Type of connections pressure port 2nd element, only for pump type T TY-COd
type E
Thread type pressure side of 2nd element TA-Pd
M18
Flow control valve present
NO
Material of the housing
aluminium
Вес (кг): 5,65
| Диаметр вала | 15 мм |
|---|---|
| Вес | 5,65 кг |
| Количество секций | 2 |
| Направление вращения | против часовой |
| Общая длина насоса | 216 мм |
| Расстояние между крепежными отверстиями на фланце | 99.6 мм |
