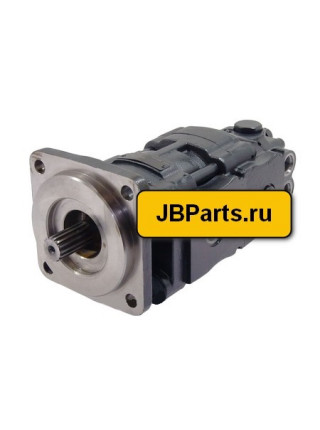

Гидронасос New Holland 799137J8
Casappa KP30.38-05S6-LMF/OD-M5-KSL/30
87743513 1359438R 87362337
Casappa 799137GY (KP30.38-05S6-LMF/0D-M5-KSL/30)
799137J4 (KP30.34-05S6-LMF/OD-M5-KSL/30)
85824395 85826149 87743506 799137H0 799137HO 79914143 79914144 79933052 85817699 85817700 79933056 0111524M 52017
Dawid Brown X1C50415036Q52A1K4E0X0XC
Type of pump
gearpump
Number of elements
2
Type of flange
type G
Diameter of flange mounting holes D1 (mm)
14.4
Center distance of mounting holes C1 (mm)
114.5
Total length of pump L1 (mm)
390
Neck diameter D2 (mm)
127
Type of shaft
type D
Distance from flange to end L2 (mm)
46
Diameter of shaft D3 (mm)
25
Number of splines
15
Direction of rotation
clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type C
Thread type of connections suction 1st element
M12
Center distance between mounting holes C-CO1a (mm)
42.5
Center distance between mounting holes C-CO2a (mm)
78
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
1 1/16 UNF
Flow control valve present
YES
Biggest Thread type valve TA3
7/8 UNF
Second Thread type valve TA4
3/4 UNF
Material of the housing
metal
Вес (кг): 33
