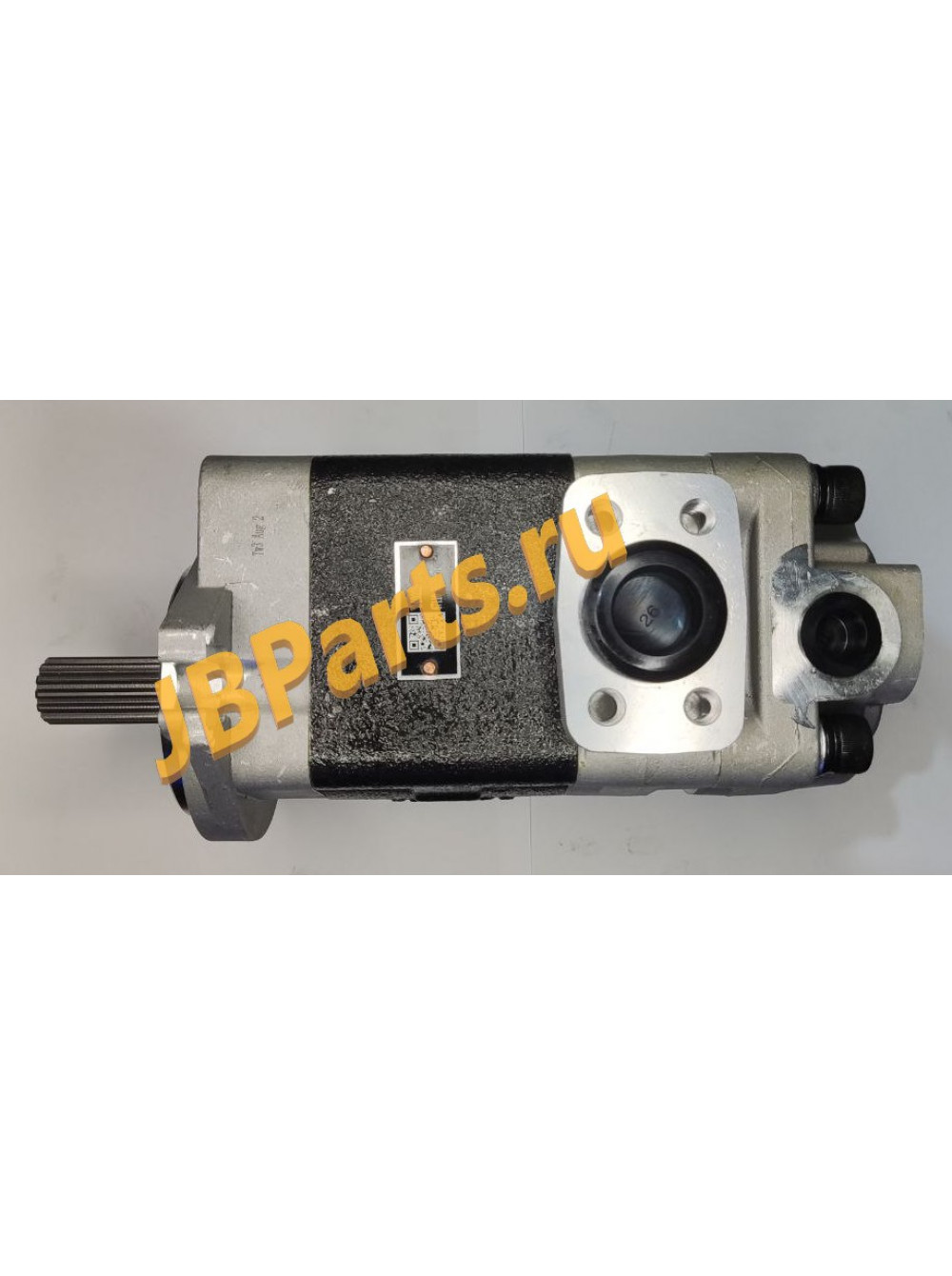

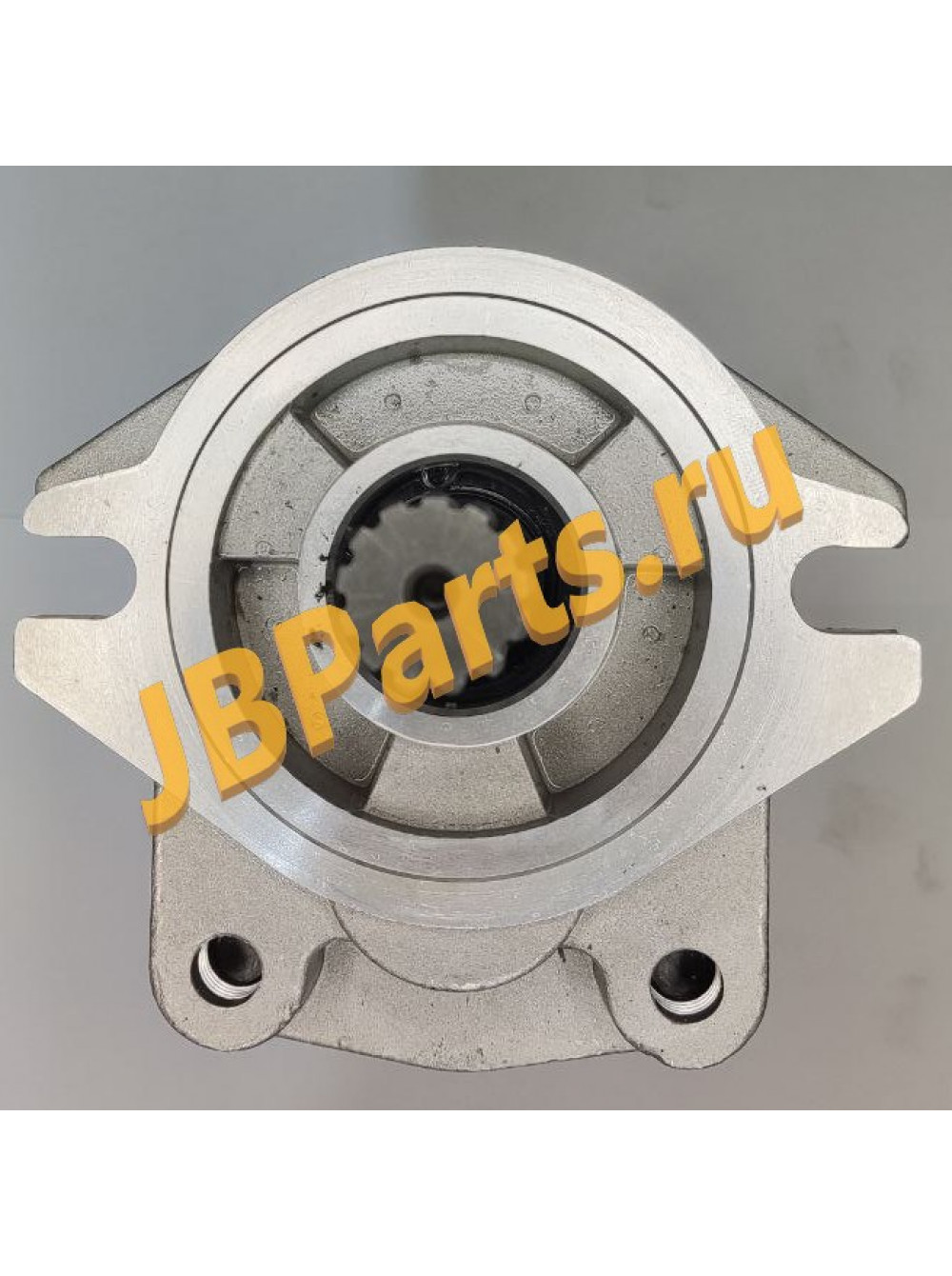

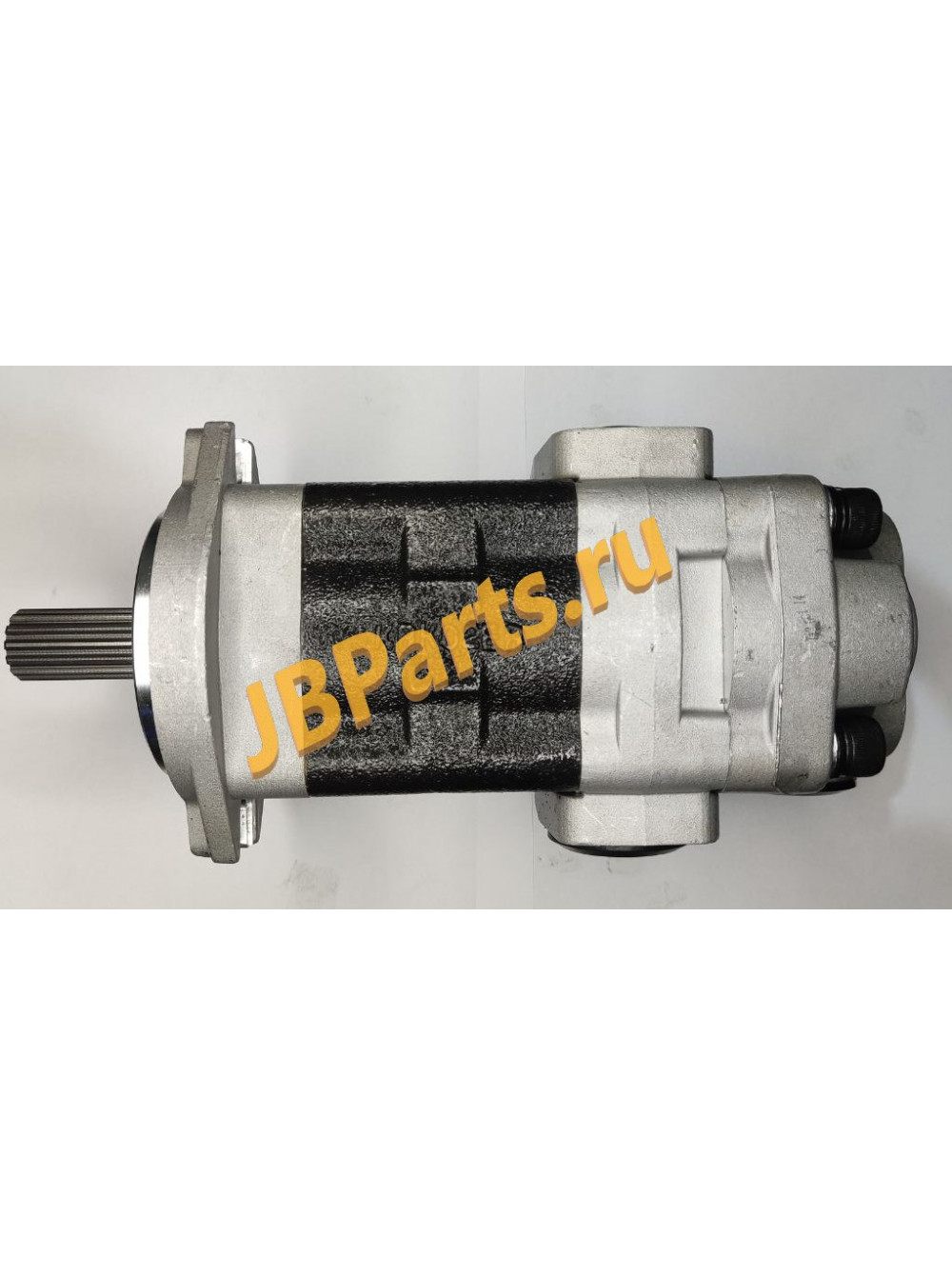

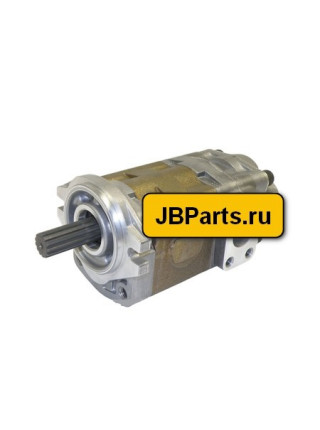

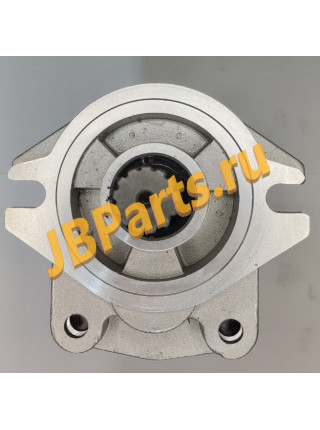

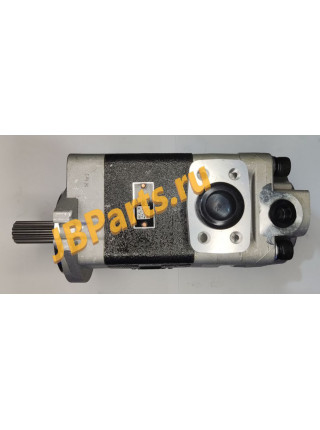

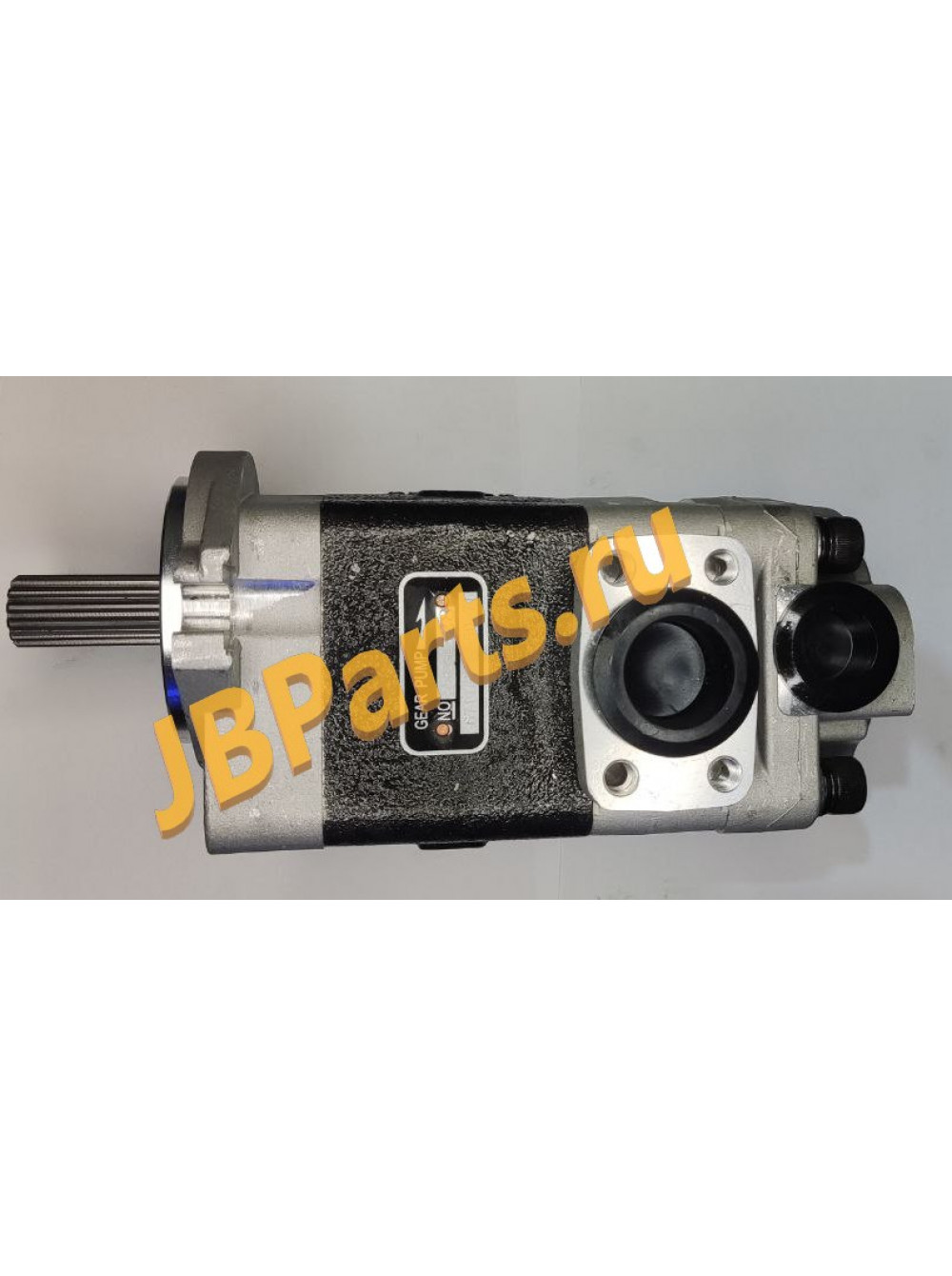

Гидронасос Toyota 67110-30550-71
111 ₽
Гидронасос Toyota 67110-30550-71
Описание
Гидронасос Toyota 67110-30550-71
671103055071
Shimadzu SDYA607L274
| Type of pump | gearpump |
|---|---|
| Number of elements | 2 |
| Type of flange | type B |
| Center distance of mounting holes C1 (mm) | 106.2 |
| Total length of pump L1 (mm) | 273 |
| Neck diameter D2 (mm) | 82.5 |
| Type of shaft | type D |
| Distance from flange to end L2 (mm) | 53.5 |
| Diameter of shaft D3 (mm) | 21.6 |
| Number of splines | 13 |
| Direction of rotation | counter clockwise |
| Position of suction port 1st element, only for pump type T POS-CO1 | side |
| Type of connections suction port1st element, only for pump type T TY-COa | type C |
| Thread type of connections suction 1st element | M10 |
| Center distance between mounting holes C-CO1a (mm) | 30.2 |
| Center distance between mounting holes C-CO2a (mm) | 58.7 |
| Position of pressure 1st element, only for pump type T POS-CO2 | side |
| Type of connections pressure 1st element, only for pump type T TY-COb | type C |
| Thread type of connection pressure port 1st element TA-COb | M10 |
| Center distance between mounting holes C-CO1b (mm) | 26.2 |
| Center distance between mounting holes C-CO2b (mm) | 52.4 |
| Position of suction port 2nd element, only for pump type T POS-CO3 | side |
| Type of connections suction port 2nd element, only for pump type T TY-COc | type E |
| Thread type suction side of 2nd element TA-Pc | 1 1/16 UNF |
| Position of pressure port 2nd element, only for pump type T POS-CO4 | side |
| Type of connections pressure port 2nd element, only for pump type T TY-COd | type E |
| Thread type pressure side of 2nd element TA-Pd | 3/4 UNF |
| Flow control valve present | NO |
| Material of the housing | aluminium and metal |
Вес (кг) 8,50
SHIMADZU
7FDA50
