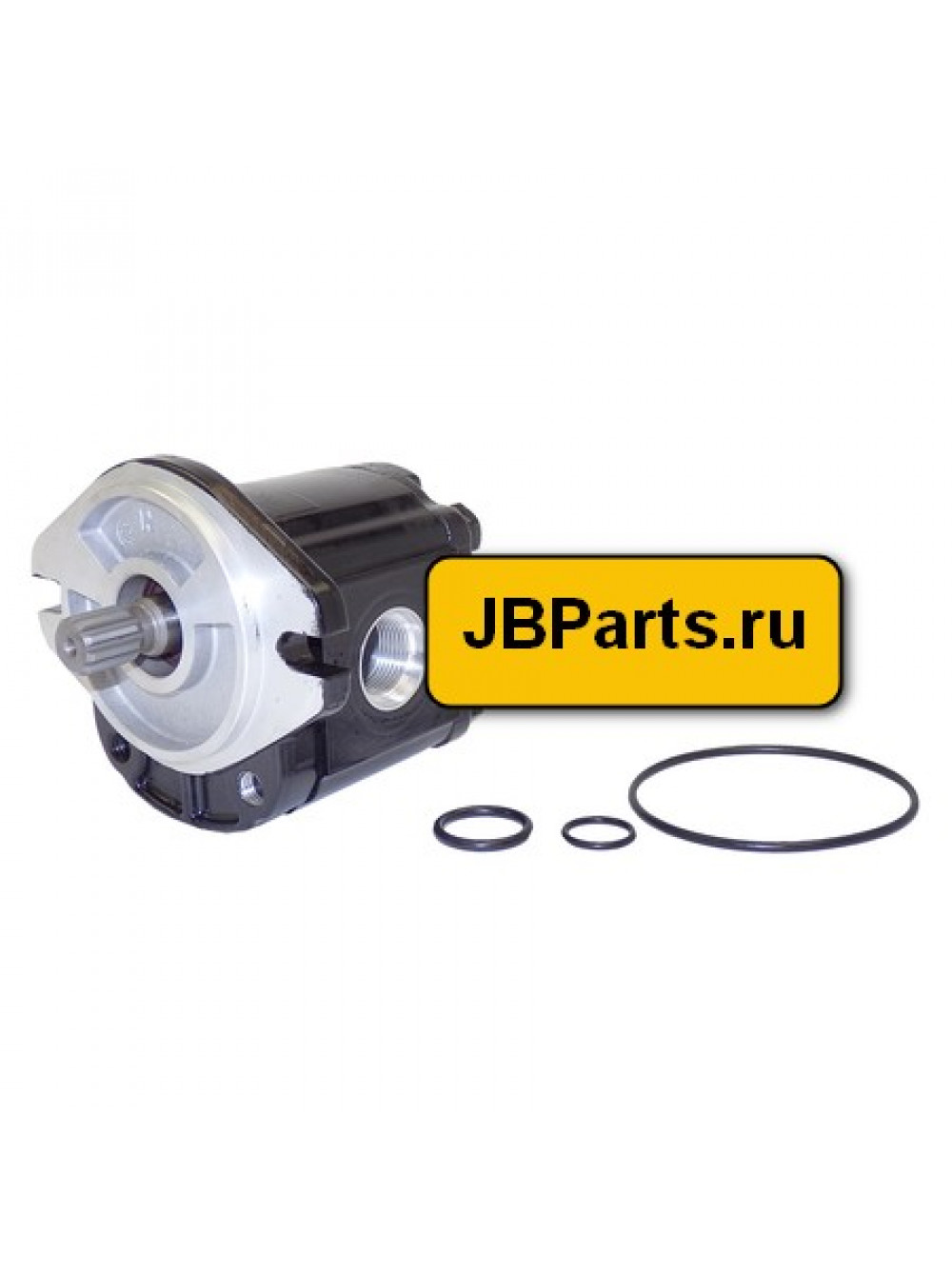

Гидронасос JCB 20/950663

Гидронасос JCB 20/950663

20950663

Pump gear Auxpumpoptional запчасти на JCB JS160W

334/C6352 334C6352 Pump gear (Steer)

Parker 3349112014

Type of pump

gearpump

Number of elements

1

Type of flange

type B

Center distance of mounting holes C1 (mm)

106.5

Total length of pump L1 (mm)

132

Neck diameter D2 (mm)

82.5

Type of shaft

type D

Distance from flange to end L2 (mm)

32

Diameter of shaft D3 (mm)

17

Number of splines

10

Direction of rotation

counter clockwise

Position of suction port 1st element, only for pump type T POS-CO1

side

Type of connections suction port1st element, only for pump type T TY-COa

type E

Thread type suction side of 1st element TA-Pa

3/4 BSP

Position of pressure 1st element, only for pump type T POS-CO2

side

Type of connections pressure 1st element, only for pump type T TY-COb

type E

Thread type pressure side of 1st element TA-Pb

1/2 BSP

Flow control valve present

NO

Material of the housing

aluminium

Торговая марка: PARKER

Вес (кг): 3,3
