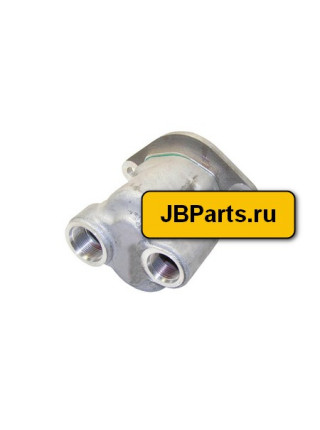

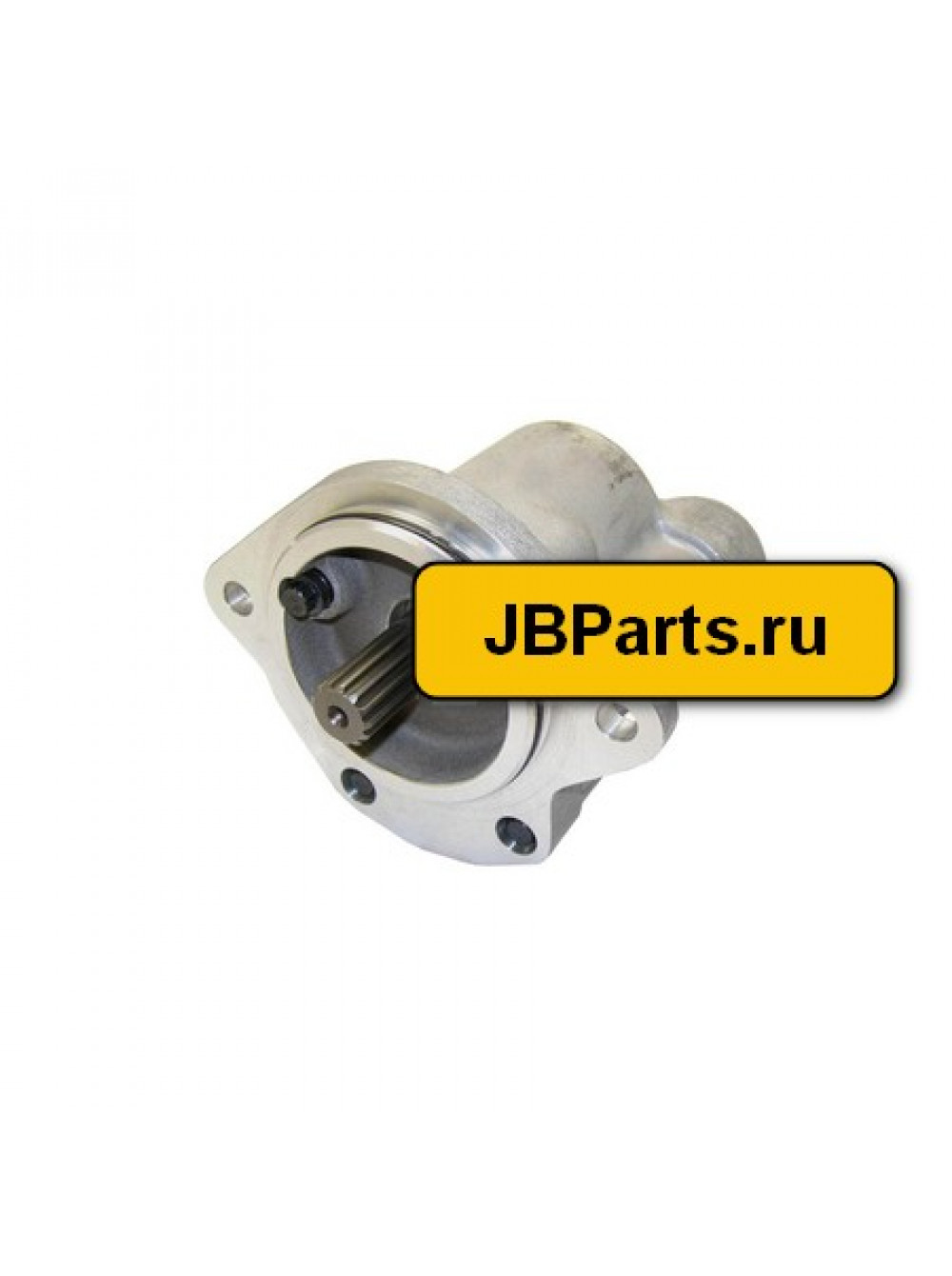

Насос коробки передач Kalmar / Sisu 800822545
Type of pump
gearpump
Number of elements
1
Type of flange
type A
Diameter of flange mounting holes D1 (mm)
13.4
Center distance of mounting holes C1 (mm)
146
Total length of pump L1 (mm)
179
Neck diameter D2 (mm)
101.6
Type of shaft
type D
Distance from flange to end L2 (mm)
38
Diameter of shaft D3 (mm)
21.9
Number of splines
13
Direction of rotation
counterclockwise
Position of suction port 1st element, only for pump type T POS-CO1
rear
Type of connections suction port1st element, only for pump type T TY-COa
type E
Thread type suction side of 1st element TA-Pa
1 5/8 UNF
Position of pressure 1st element, only for pump type T POS-CO2
rear
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
1 5/16 UNF
Flow control valve present
NO
Material of the housing
aluminium
Вес (кг): 4,7
Для КПП Dana Spicer
