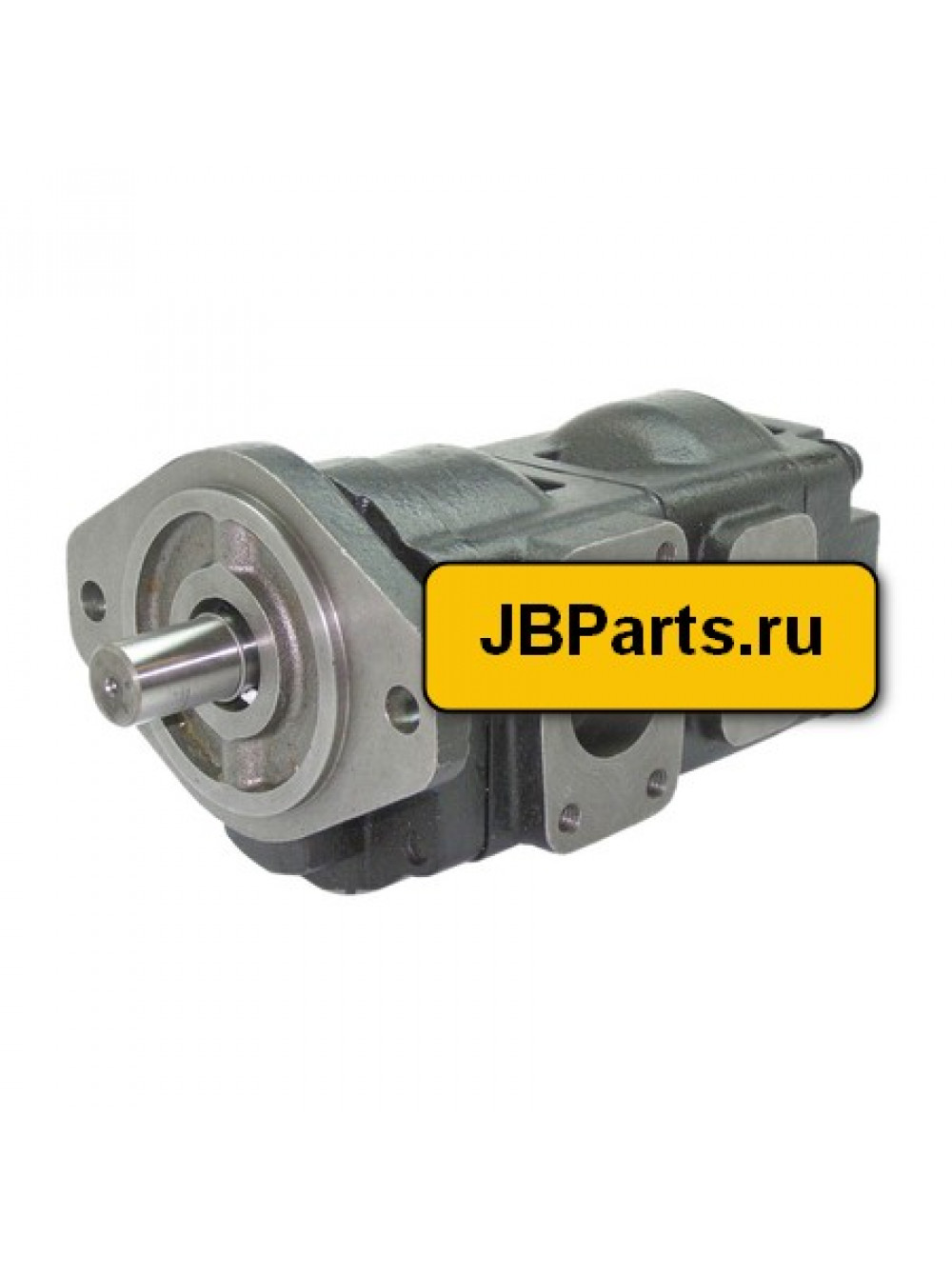

Гидронасос PARKER 7029122001
PGP620
PGP620B0330AM3H3MS6D5C-620A029
20/903100 20903100
4072D
7470F
Type of pump
gearpump
Number of elements
2
Type of flange
type A
Diameter of flange mounting holes D1 (mm)
14
Center distance of mounting holes C1 (mm)
146
Total length of pump L1 (mm)
318.4
Neck diameter D2 (mm)
101.6
Type of shaft
type C
Distance from flange to end L2 (mm)
47
Diameter of shaft D3 (mm)
25.4
Key (way) width W (mm)
6.5
Direction of rotation
counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1
side
Type of connections suction port1st element, only for pump type T TY-COa
type C
Thread type of connections suction 1st element
7/16 UNC
Center distance between mounting holes C-CO1a (mm)
43
Center distance between mounting holes C-CO2a (mm)
77
Position of pressure 1st element, only for pump type T POS-CO2
side
Type of connections pressure 1st element, only for pump type T TY-COb
type E
Thread type pressure side of 1st element TA-Pb
1 1/16 UNF
Position of pressure port 2nd element, only for pump type T POS-CO4
side
Type of connections pressure port 2nd element, only for pump type T TY-COd
type E
Thread type pressure side of 2nd element TA-Pd
7/8 UNF
Flow control valve present
NO
Material of the housing
metal
Вес (кг): 23,57
