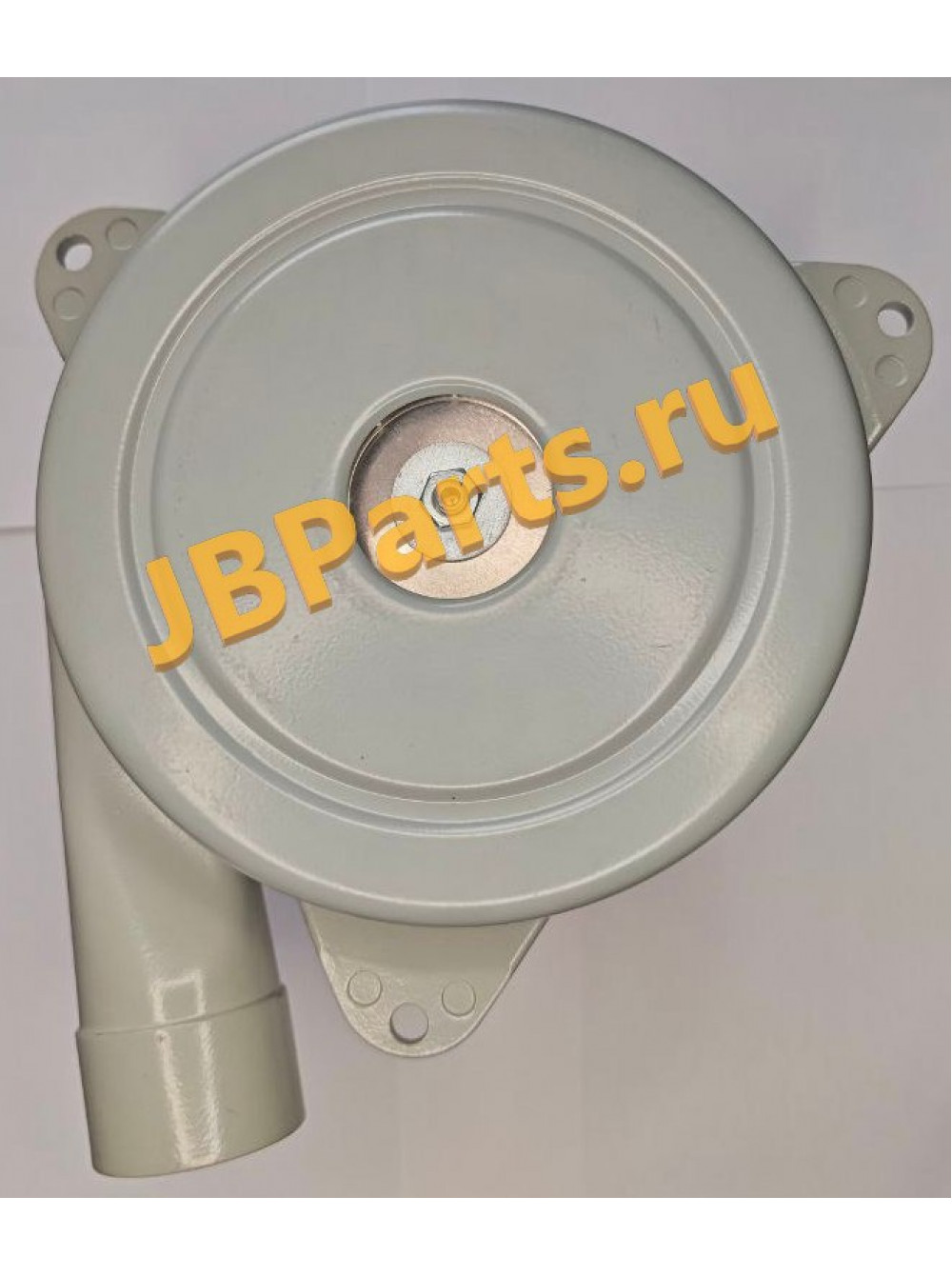

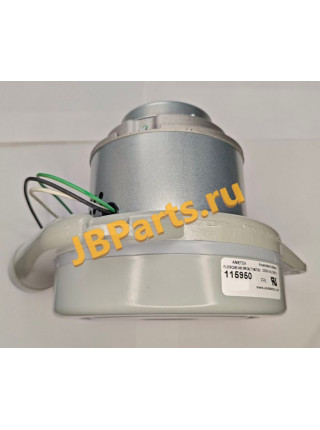

Вакуумный мотор Ametek 115950-00
111 ₽
Вакуумный мотор Ametek 115950-00
Описание
Вакуумный мотор Ametek 115950-00
115950
11595000
| Type of vacuum motor | motor with tangential discharge |
|---|---|
| Total height H1 (mm) | 176 |
| Height of stator H2 (mm) | 75 |
| Height of turbine H3 (mm) | 64 |
| Diameter turbine D1 (mm) | 182 |
| Diameter turbine opening D2 (mm) | 44 |
| Outer diameter blower D3 (mm) | 51 |
| Connection wire | YES |
| Voltage (V) | 240 |
| Frequency (Hz) | 60 |
| Number of turbines AT-TB | 2 |
| Number of terminals | 3 |
| Material of the housing | steel |
| Suction nozzle | NO |
| Type of tension | AC |
Тэги: Вакуумный мотор, Ametek
