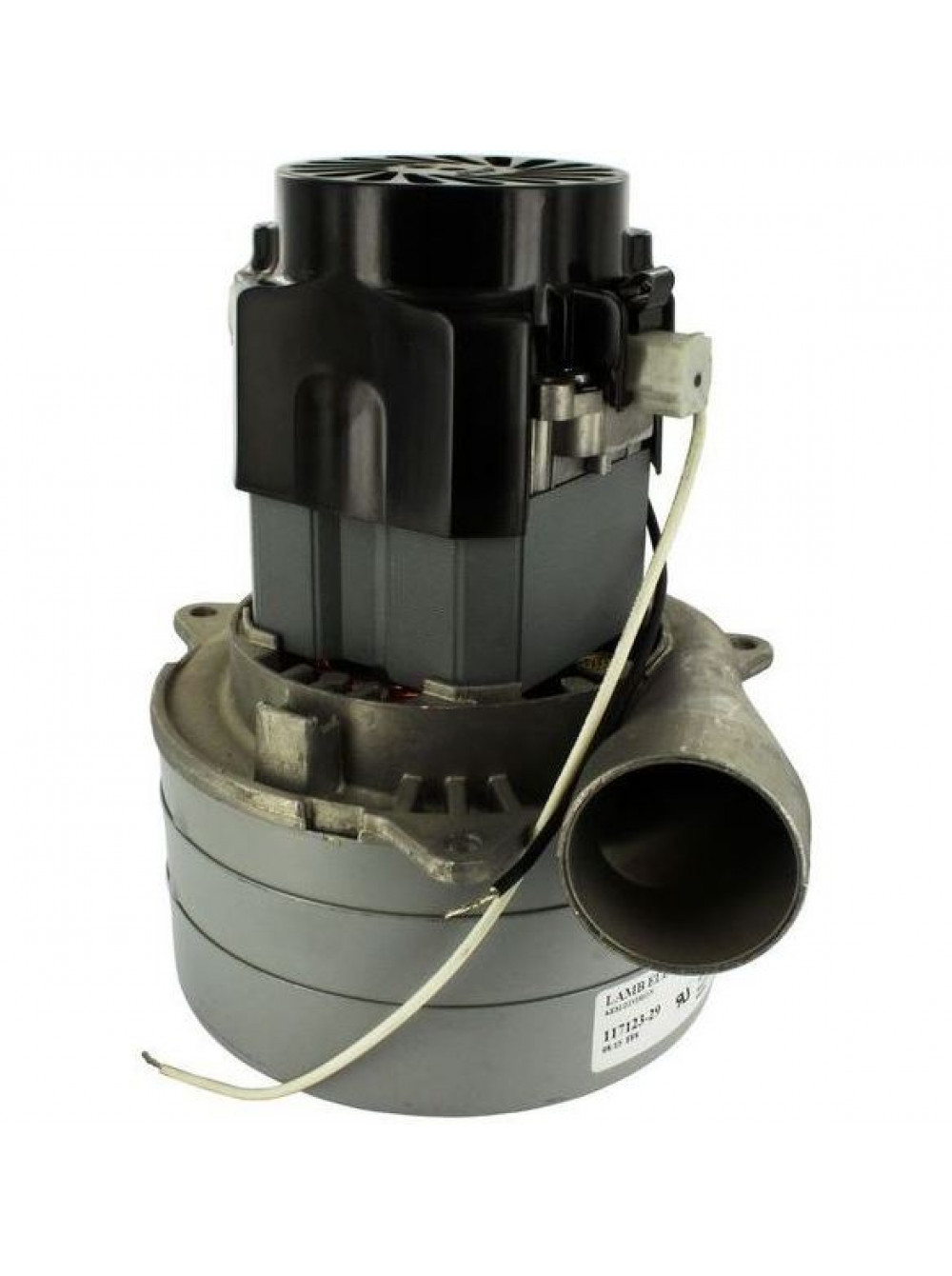

Вакуумный мотор Ametek 117123-29
111 ₽
Вакуумный мотор Ametek 117123-29
Описание
Вакуумный мотор Ametek 117123-29
11712329
| Type of vacuum motor | motor with tangential discharge |
|---|---|
| Total height H1 (mm) | 239 |
| Height of stator H2 (mm) | 40 |
| Height of turbine H3 (mm) | 89 |
| Height of suction nozzle H4 (mm) | 26 |
| Diameter turbine D1 (mm) | 144 |
| Outer diameter blower D3 (mm) | 43.5 |
| Outer diameter suction nozzle D4 (mm) | 38.2 |
| Connection wire | YES |
| Voltage (V) | 240 |
| Frequency (Hz) | 50 |
| Number of turbines AT-TB | 3 |
| Number of terminals | 2 |
| Material of the housing | plastic |
| Suction nozzle | YES |
| Type of tension | AC |
