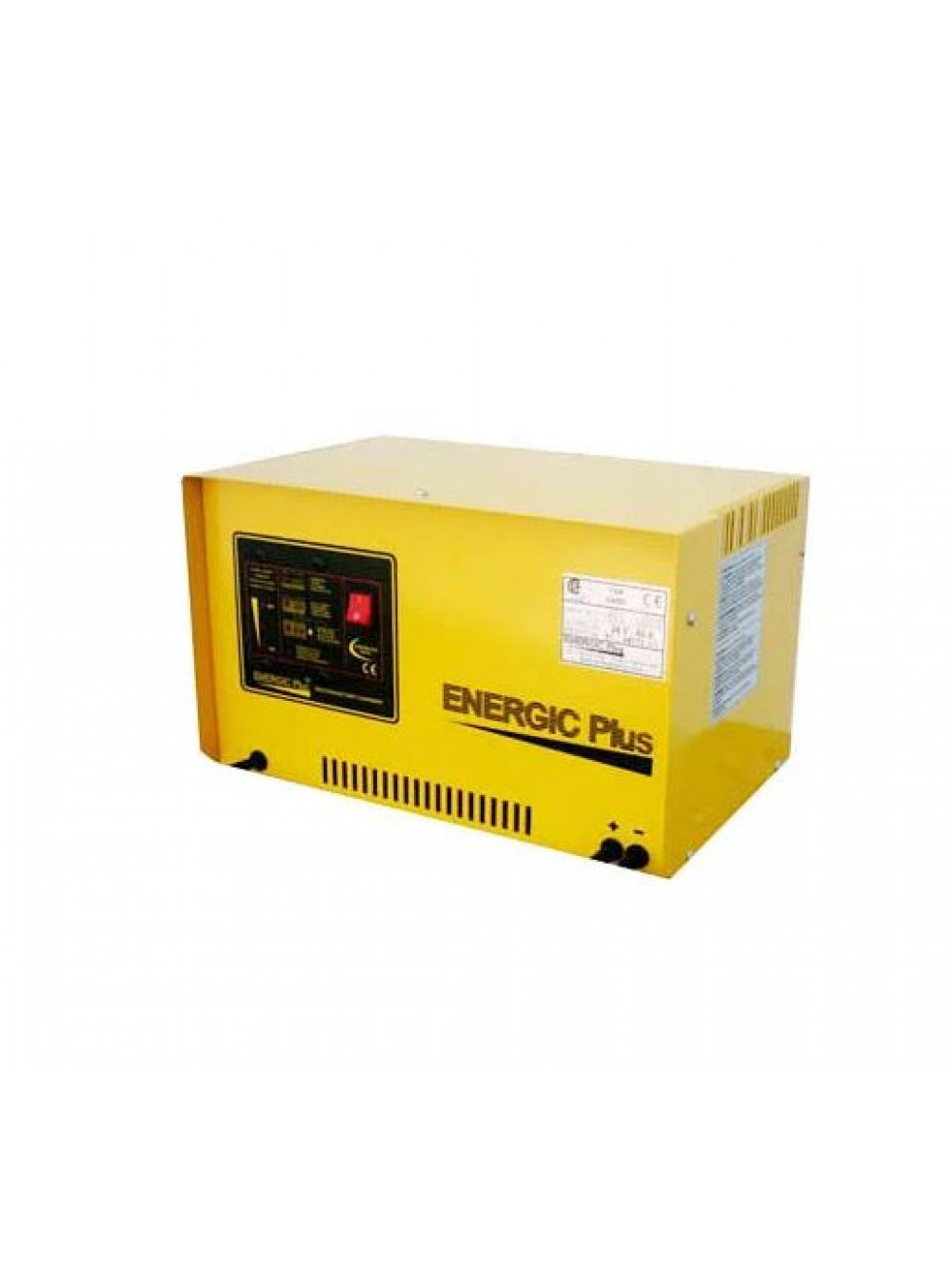

Зарядное устройство ENERGIС Plus 122TA8168

Зарядное устройство ENERGIС Plus 122TA8168

Зарядное устройство Energic Plus  предназначено для зарядки тяговых аккумуляторных батарей погрузчиков.

Полностью автоматическое зарядное устройство с микропроцессорным управлением для тяговых аккумуляторов погрузчиков, штабелеров и электрокар.

RX 48V 80A

100BA4924

Type

battery charger

High frequency battery charger

NO

Suitable for regions with high humidity

NO

Air pump present

NO

Battery type

wet battery (lead acid, calcium…)

Operates fully automatic

YES

DC output voltage (V)

48

DC output current (A)

80

AC input voltage (V)

220

Frequency (Hz)

50-60

Battery capacity range 10 hours (Ah)

360-500

Battery capacity range 12 hours (Ah)

480-560

Input power (kVA)

5.6

Efficiency of the charger (%)

90

Power factor (%)

0.9

Total width of the battery charger (mm)

500

Total height of the battery charger (mm)

340

Total length of the battery charger (mm)

360

European cross section square millimeters (mm²)

25

USA wire diameter (AWG)

4

Minimum working temperature (°C)

5

Maximum working temperature (°C)

45

Led control panel

built in

Built in datalogger

NO

Built in maintenance

NO

Can bus interface present

NO

Ignition interlock device present

NO

Equalisation function

YES

With power supply cable

NO

Вес (кг) 45,00
