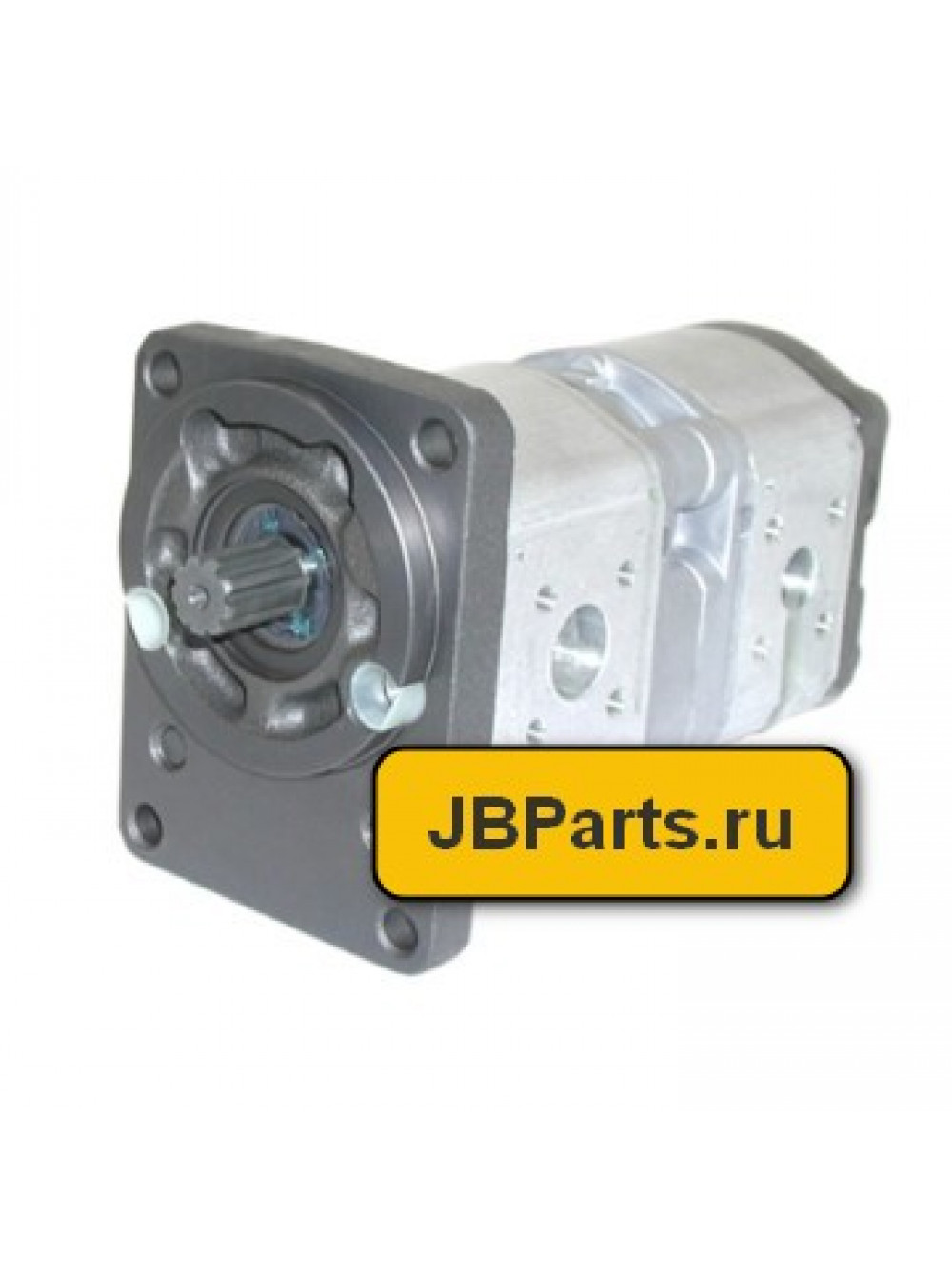

Гидравлический насос Rexroth 0510565332

Гидравлический насос Rexroth 0510565332

1517222465 + 1517222376

AZPFF-10-011/005LFB2020MB

11 cm³/rev + 5 cm³/rev

Rectangular flange Ø 80 mm

anti clockwise rotation

Splined shaft DIN 5482 B17x14

Square flange DIN 3901/3902

Square flange DIN 3901/3902

Max. flow PU2 [l/min]

192.5

Nominal size [cm³/rev]

11.0

Size pump unit 2 [cm³/rev]

55.0

Max. intermittent pressure pump unit 1 [bar]

280.0

Max. intermittent pressure pump unit 2 [bar]

280.0

Maximum rotational speed [rpm]

3500.0

Drive shaft

Spline shaft DIN 5482 B 28x25

Direction of rotation

Counter-clockwise rotation

Front cover

Rectangular flange Ø 80 mm

Housing material

Aluminum

Noise level

Standard noise level

Product

External gear unit

Model

4 ... 28 cm³/rev

Model pump unit 2

4 .... 28 cm³/rev

Series

Shaft Ø 18 mm

Version

Al

Port connection

Square flange

Port connection pump unit 2

Square flange

Sealing material

NBR

Rear cover

Standard (cast iron)

Weight [kg]

5.23
